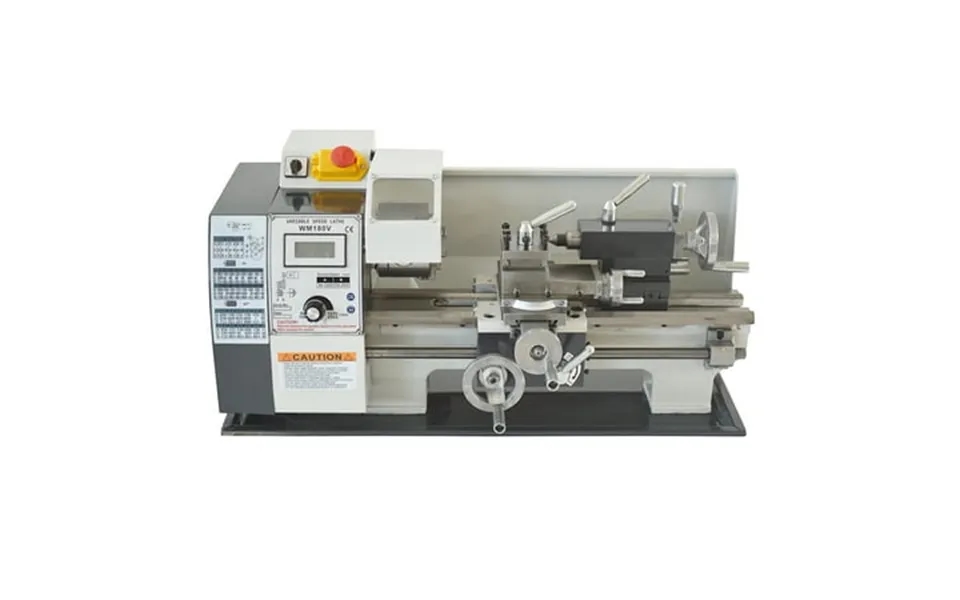

Intsupermai Inch Thread Precision Metal Lathe 7 X12 Brushless Motor Lathe

Introduction: miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example turning inside and outside cylindrical surface cone surface ring groove and all kinds of commonly used metric thread. Parameters: model: wm180v motor: 110v brushless motor voltage: ac110v 50 60hz power: 600w length of center: 11.8 300Mm swing over bed: 7 180mm spindle bore: 0.83 21Mm diameter of chuck: 3.94 100Mm width of lathe bed: 3.94 100Mm number of spindle speeds: infinitely variable speeds spindle taper: mt3 knife rest labour: horizontal four-station spindle rotation speed: 50-2500rpm range of metric threads: 0.3-3Mm range of inch threads optional accessory : 10-44t.P.I precision of the spindle: 0.01Mm range of longitudinal feeds: 0.08Mm-0.16Mm automatic feed range: 0.1Mm-0.2Mm towing trip: 1.97 50Mm cross slide travel: 2.95 75Mm tailstock quill travel: 2.36 60Mm tail frame taper: mt2 lathe sizes: 27.9 *11.8 *13.0 71*30*33Cm note: we provide optional parts for this lathe. If you need please contact us. Item included: 028062 wm210v lathe * 1 chuck jaw * 3 open spanner *2 gear *7 30 48 50 52 60 66 70 the screwdriver * 2 the fuse * 1 hexagon wrench *5 oil can * 1 chuck spanner *1

Introduction: miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example turning inside and outside cylindrical surface...show more
