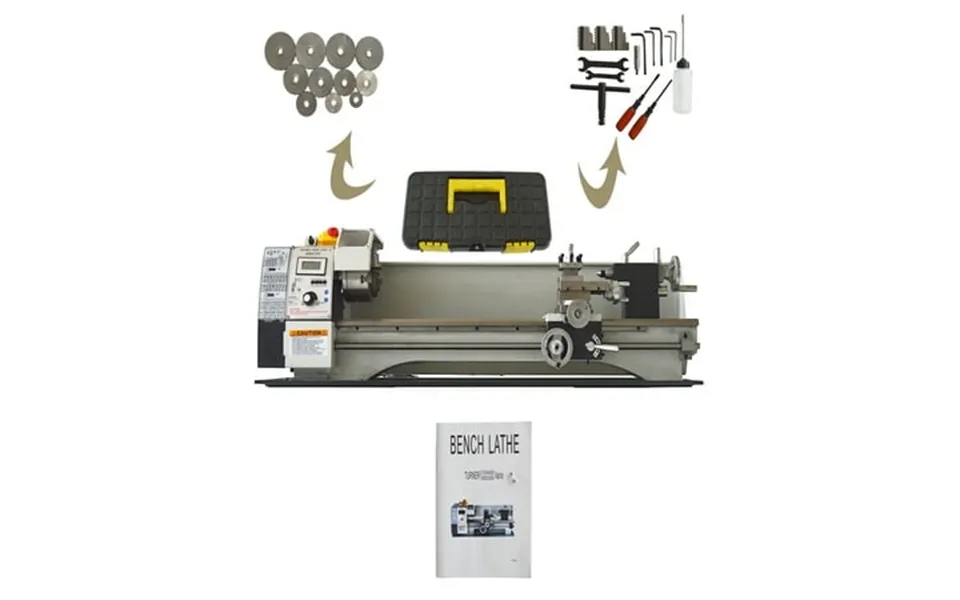

Intsupermai Inch Precision Metal Bench Lathe 8 X24 Multifunctional Bench Lathe

Introduction: miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example turning inside and outside cylindrical surface cone surface ring groove and all kinds of commonly used metric thread. Parameters: model: wm210v motor: 110v brushless motor voltage: ac110v 50 60hz power: 1100w material: metal iron length of center: 23.6 600Mm swing over bed: 8.3 210Mm rotary diameter of tool rest: 5.51 140Mm spindle bore: 1.50 38Mm diameter of chuck: 4.92 125Mm width of lathe bed: 3.94 100Mm spindle taper: mt5 number of spindle speeds: infinitely variable speeds knife rest labour: horizontal four-station spindle rotation speed: 50-2500rpm range of inch threads optional accessory : 10-44t.P.I automatic feed range: 0.1Mm-0.2Mm range of metric threads: 0.5-3Mm precision of the spindle: 0.01Mm maximum stroke of tool rest plate: 2.16 55Mm maximum stroke of middle plate: 2.95 75Mm maximum stroke of bottom plate: 19.7 500Mm maximum stroke of tailstock sleeve: 2.36 60Mm tail frame taper: mt2 lathe sizes: 38.2 *11.8 *13.4 97*30*34Cm package size: 43.7 *19.3 *17.7 111*49*45Cm note: we provide optional parts for this lathe. If you need please contact us. Item included: 028331 wm210v lathe * 1 chuck jaw * 3 open spanner *2 gear *11 75 72 70 66 60 60 52 50 48 40 30 the screwdriver * 2 the fuse * 1 hexagon wrench *5 oil can * 1 chuck spanner *1

Introduction: miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example turning inside and outside cylindrical surface...show more
