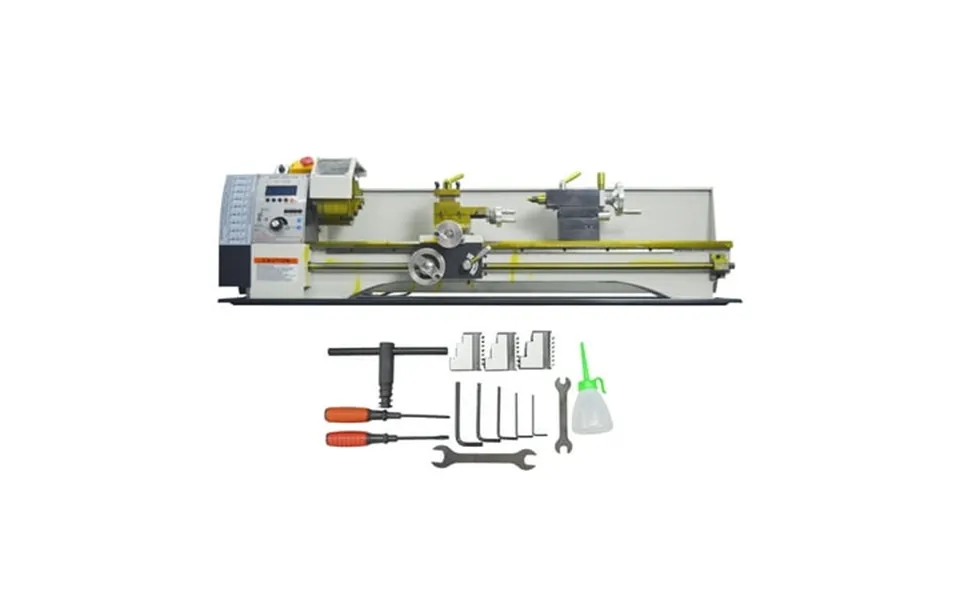

Introduction: intsupermai precision metal lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example turning inside and outside cylindrical surface cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread. Parameters: model: rc-210e voltage: ac110v 50 60hz brushless motor power: 900w 1.2Hp length of center: 31.50 800Mm swing over bed: 8.27 210Mm rotary diameter of tool rest: 5.51 140Mm spindle bore: 1.50 38Mm diameter of chuck: 4.92 125Mm width of lathe bed: 3.94 100Mm thread standard: metric imperial customized turning delay start time: 1s-30s number of spindle speeds: infinitely variable speeds range of inch threads: 10-44t.P.I range of metric threads: 0.5Mm-3mm spindle taper: mt5 knife rest labour: horizontal four-station spindle rotation speed: 50-2500rpm precision of the spindle: 0.01Mm automatic feed range: 0.01Mm-0.4Mm tail frame taper: mt2 maximum stroke of tool rest plate: 2.16 55Mm maximum stroke of middle plate: 2.95 75Mm maximum stroke of bottom plate: 26.77 680Mm maximum stroke of tailstock sleeve: 2.36 60Mm package size: 49.2 *18.9 *18.1 125Cm*48cm*46cm net weight gross weight: 152lb 69kg 187lb 85kg items included: 028401 rc-210e lathe *1 base oil pan *1 oil can *1 hexagon wrench *5 open spanner *2 the screwdriver *2 chuck jaw *3 chuck spa...
