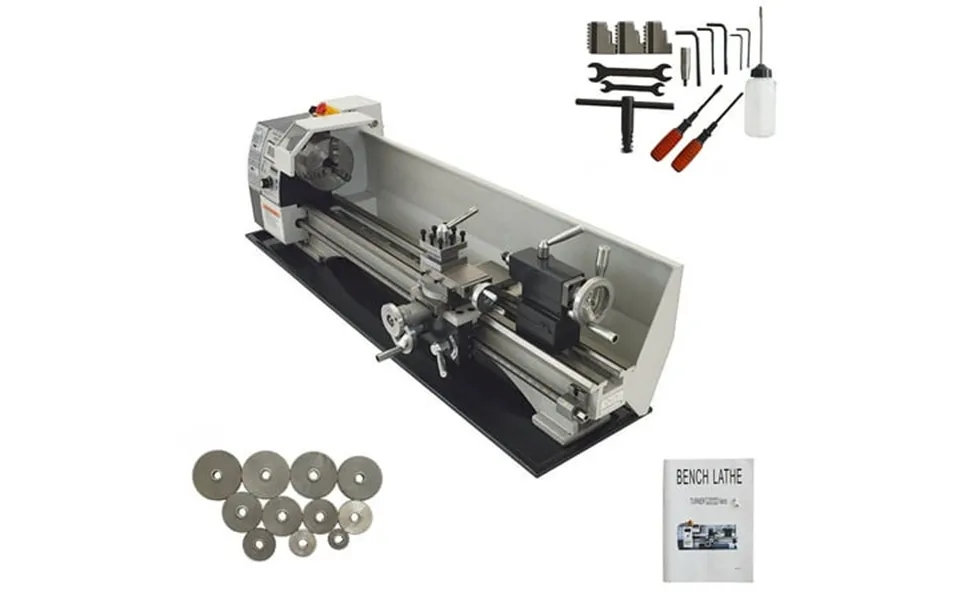

Description precision instrument metal lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example turning inside and outside cylindrical surface cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread cone surface ring groove and forming turning surface turning end face and all kinds of commonly used imperial thread. Parameters motor: 110v brush less motor voltage: ac110v power: 900w length of center: 31.5Inch 800mm swing over bed: 8.3Inch 210mm rotary diameter of tool rest: 5.51Inch 140mm spindle bore: 1.50Inch 38mm diameter of chuck: 4.92Inch 125mm width of lathe bed: 3.94Inch 100mm number of spindle speeds: infinitely variable speeds spindle taper: mt5 knife rest labour: horizontal four-station spindle rotation speed: 50-2500rpm range of inch threads optional accessory : 10-44t.P.I precision of the spindle: 0.01Mm automatic feed range: 0.1Mm-0.2Mm maximum stroke of tool rest plate: 2.16Inch 55mm maximum stroke of middle plate: 2.95Inch 75mm maximum stroke of bottom plate: 26.8Inch 680mm maximum stroke of tailstock sleeve: 2.36Inch 60mm tail frame taper: mt2 lathe sizes: 45.7*13*13.4Inch 116*33*34cm package size: 49.2*18.9*17.7Inch 125*48*45cm gross weight: 183lb 83kg note: we provide optional parts for this lathe. If you need please contact us. There are a series of fortunate lathes for inch and metric threads. If you need other models of lathes please feel free...
