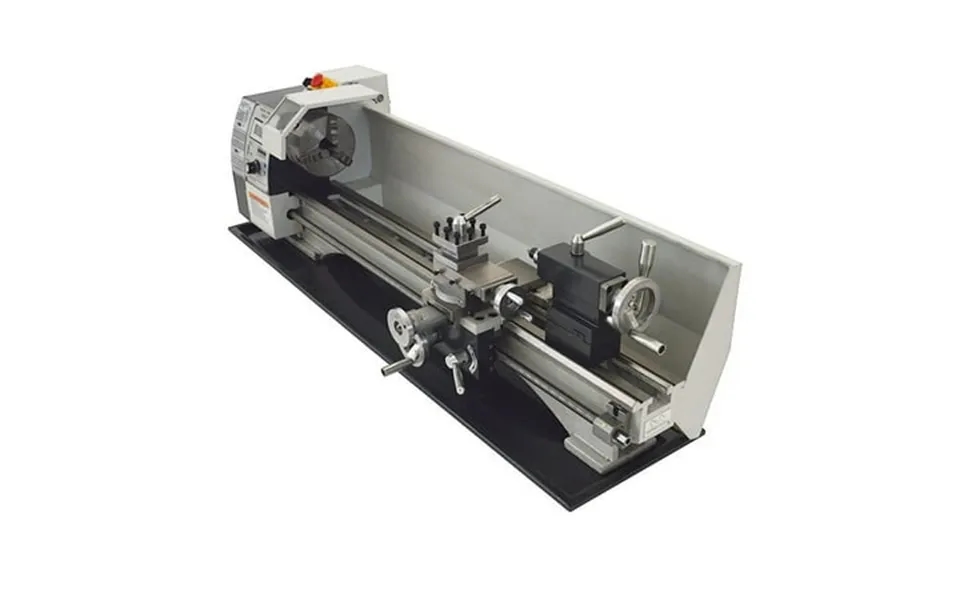

Intbuying 8.3*23.6inch Metal Lathe Precision Metal Bench Lathe Inch Thread 1100w

Description precision instrument metal lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example turning inside and outside cylindrical surface cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread cone surface ring groove and forming turning surface turning end face and all kinds of commonly used imperial thread. Product parameters motor: 110v brush less motor voltage: ac110v power: 1100w length of center: 23.6Inch 600mm swing over bed: 8.3Inch 210mm rotary diameter of tool rest: 5.51Inch 140mm spindle bore: 1.50Inch 38mm diameter of chuck: 4.92Inch 125mm width of lathe bed: 3.94Inch 100mm number of spindle speeds: infinitely variable speeds spindle taper: mt5 knife rest labour: horizontal four-station spindle rotation speed: 50-2500rpm range of inch threads optional accessory : 10-44t.P.I precision of the spindle: 0.01Mm automatic feed range: 0.1Mm-0.2Mm maximum stroke of tool rest plate: 2.16Inch 55mm maximum stroke of middle plate: 2.95Inch 75mm maximum stroke of bottom plate: 19.7Inch 500mm maximum stroke of tailstock sleeve: 2.36Inch 60mm tail frame taper: mt2 lathe sizes: 38.2*11.8*13.4Inch 97*30*34cm package size: 43.7*19.3*17.7Inch 111*49*45cm gross weight: 165lb 75kg note: we provide optional parts for this lathe. If you need please contact us. There are a series of fortunate lathes for inch and metric threads. If you need other models of lathes please...
