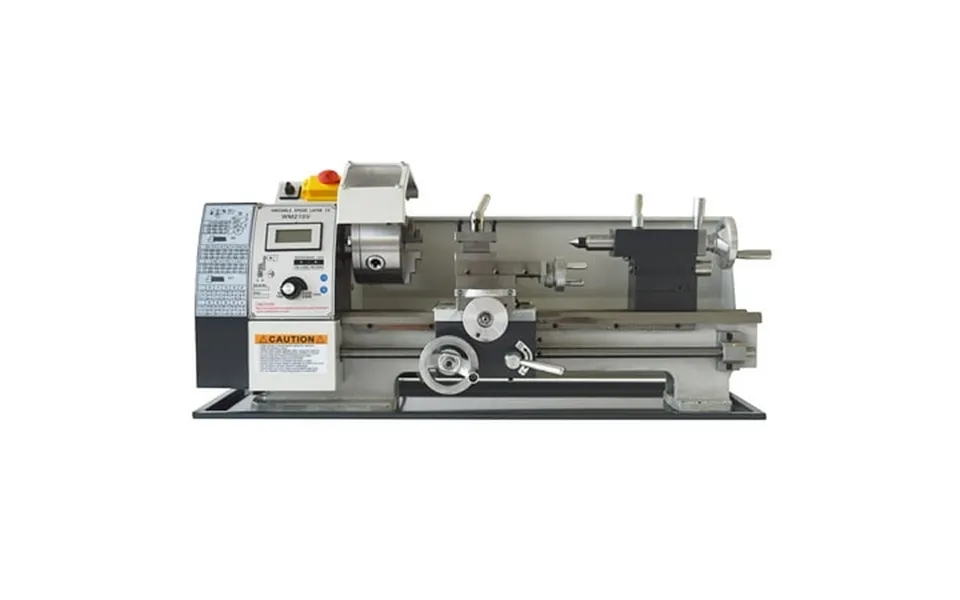

Eqcotwea Precision Metal Bench Lathe Inch Thread 110v 900w Brushless Motor

Introduction: miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies. For example turning inside and outside cylindrical surface ring groove and forming turning surface and all kinds of commonly used metric thread. Parameters: model: wm210v motor: 110v brushless motor voltage: ac110v 50 60hz power: 900w number of spindle speeds: infinitely variable speeds spindle taper: mt5 knife rest labour: horizontal four-station spindle rotation speed: 50-2500rpm range of metric threads: 0.5-3Mm range of inch threads optional accessory : 10-44t.P.I precision of the spindle: 0.01Mm automatic feed range: 0.1Mm-0.2Mm maximum stroke of tool rest plate: 2.16 55Mm maximum stroke of middle plate: 2.95 75Mm maximum stroke of bottom plate: 10.87 276Mm maximum stroke of tailstock sleeve: 2.36 60Mm tail frame taper: mt2 length of center: 15.7 400Mm swing over bed: 8.3 210Mm rotary diameter of tool rest: 5.51 140Mm spindle bore: 1.50 38Mm diameter of chuck: 4.92 125Mm width of lathe bed: 3.94 100Mm lathe sizes: 31.9 *11.8 *13.8 81*30*35Cm items included: 028033 eqcotwea precision metal bench lathe inch thread 110v 900w brushless motor
