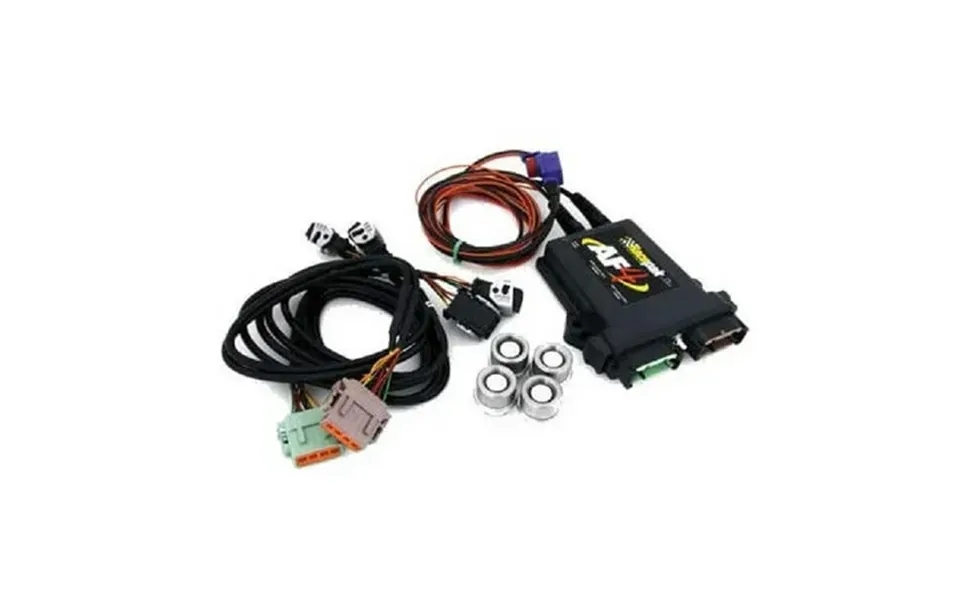

Racepak 220-vm-af4-1234 4 Channel Wideband Controller

4 Channel air fuel module and harness for 1-2-3-4 cylinder layout racepak has an excellent selection of a f controllers and sensors created specifically for tuning race engines. Each of these 2 and 4 channel controllers are designed to be connected to the v-net cable of racepak v-series recorders. All sensors have a 13 pigtail cable and the controller has a 37 cable for attachment to the sensor. These lengths cannot be altered. Controllers are ordered by cylinder bank layout. Racepak a f sensors are compatible with either gasoline or methanol fueled engines. Gasoline application will display a f ratios between 9.55:1 And 20:1 while methanol is shown from 4.22:1 To 8.7:1. Please specify the type of fuel you will be using when ordering. Each sensor includes one weldment and plug. Air fuel sensors can be used with all v-net products and can run on 12-18 volt battery systems. Sensors must be ordered separately Pn 810-sn-afamp
