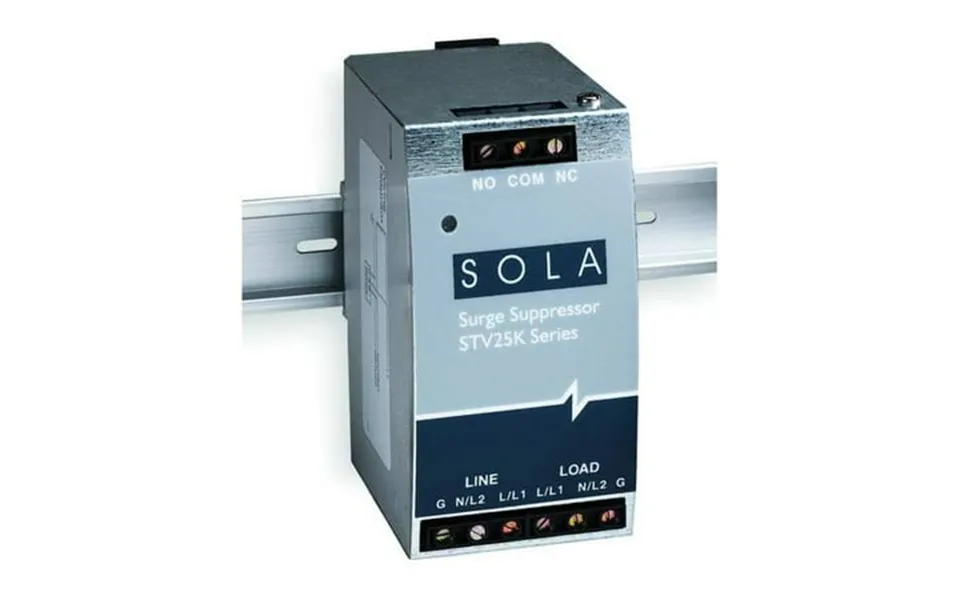

Solahd Surge Protection Device 120vac 1ph Stv25k10s

Solahd surge protective device series: stv 25k 120 vac electrical rating 47 to 63 hz frequency 2 wires 5 ka short circuit 25 ka peak surge current 3 ka nominal discharge modes of protection: l-n l-l l-g n-g 0.5 Ns response led indicator 1 ph environmental conditions: -40 to 60 deg c temperature 0 to 95% non-condensing humidity ip20 enclosure flanged mounting screw terminal metal 4.87 In h x 2.56 In w x 4.75 In d dimensions

Solahd surge protective device series: stv 25k 120 vac electrical rating 47 to 63 hz frequency 2 wires 5 ka short circuit 25 ka peak...show more
