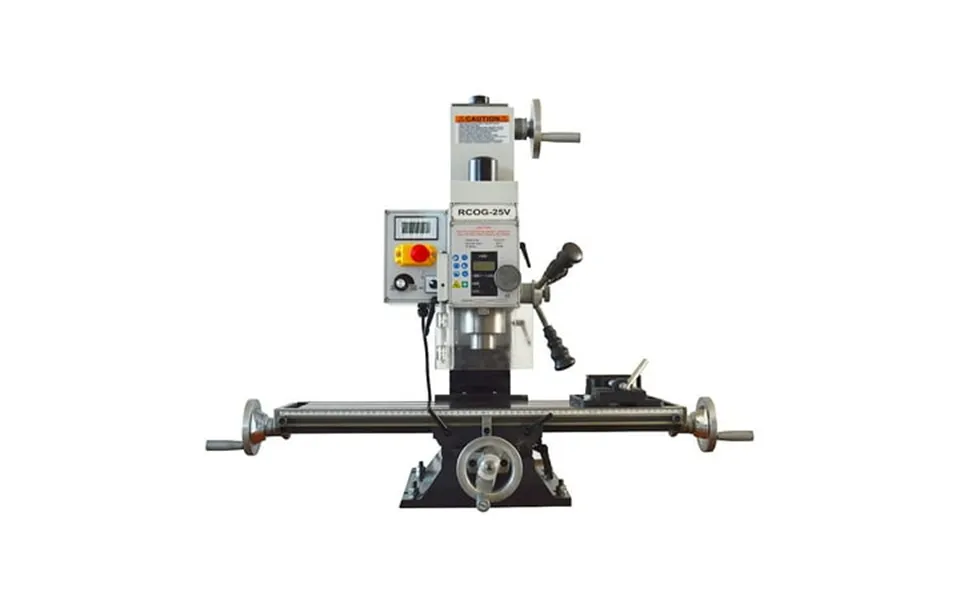

Techtongda Multi-functional Rcog-25v Brushless Precision Micro Drilling And Drilling Machine Horizontal Drilling And Mil

Product overview: rcog-25v multi-functional drilling and milling machine has rich functions can meet the metal wood plastic buddha beads and other finishing all copper brushless motor strong power simple operation durable high processing accuracy is the home diy processing of various parts of the necessary machine. Product parameters: model: rcog-25v voltage: ac110v 60hz motor power: 1100w brushless motor x axis stroke: 18.9 480Mm y axis stroke: 6.9 175Mm z axis stroke: 11 280mm spindle incline angle: 90 the nose can actually rotate 360 degrees max. Drilling diameter: 0.9 25Mm max. Face screening capacity: 2.5 63Mm max. Vertical milling capacity: 0.79 20Mm distance from spindle to table: 13.8 350Mm spindle taper: r8 spindle stroke: 2 52mm the range of spindle speeds: 20-2250rpm table size: 27.5 *7.1 700Mm*180mm t groove width: 0.47 12Mm package size: 36.2 *23.6 *36.2 92*60*92Cm gross weight: 286.6Lb 130kg item included 028334 : rcog-25v drilling and milling machine *1 drill chuck *1 drill chuck retaining pin *1 english instruction manual *1 parallel-jaw vice *1 fork wrench *2 drill chuck wrench *1 oil can * 1 cross screwdriver *1 word screwdriver *1 hexagon wrench *5 Brand: TECHTONGDA Size: []
