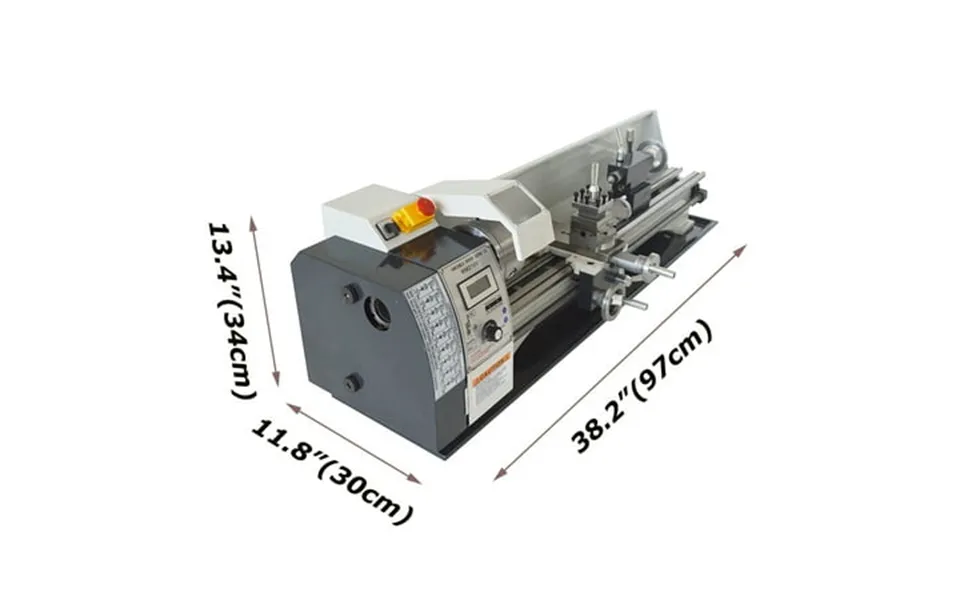

Product overviewï miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example turning inside and outside cylindrical surface cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread. Product parameters: 1. Model: wm210v 2. Motor: 110v brushless motor 3. Voltage: ac110v 50 60hz 4. Power: 1100w 5. Length of center: 23.6 600Mm 6. Swing over bed: 8.3 210Mm 7. Rotary diameter of tool rest: 5.51 140Mm 8. Spindle bore: 1.50 38Mm 9. Diameter of chuck: 4.92 125Mm 10. Spindle taper: mt5 11. Spindle rotation speed: 50-2500rpm 12. Range of metric threads: 0.5-3Mm 13. Precision of the spindle: 0.01Mm 14. Maximum stroke of tool rest plate: 2.16 55Mm 15. Maximum stroke of middle plate: 2.95 75Mm 16. Maximum stroke of bottom plate: 19.7 500Mm 17. Maximum stroke of tailstock sleeve: 2.36 60Mm 18. Tail frame taper: mt2 19. Lathe sizes: 38.2 *11.8 *13.4 97*30*34Cm 20. Package size: 43.7 *19.3 *17.7 111*49*45Cm 21. Gross weight: 161lb 73kg item included: 028332 preasion wm210v metric thread precision metal lathe 1100w brushless motor multifunctional precision bench lathe 8 x24 wm210v lathe * 1 chuck jaw * 3 open spanner *2 gear *4 40 50 60 72 the screwdriver * 2 the fuse * 1 hexagon wrench *5 oil can * 1 chuck spanner *1 english instruction manual *1
Brand: PreAsion
