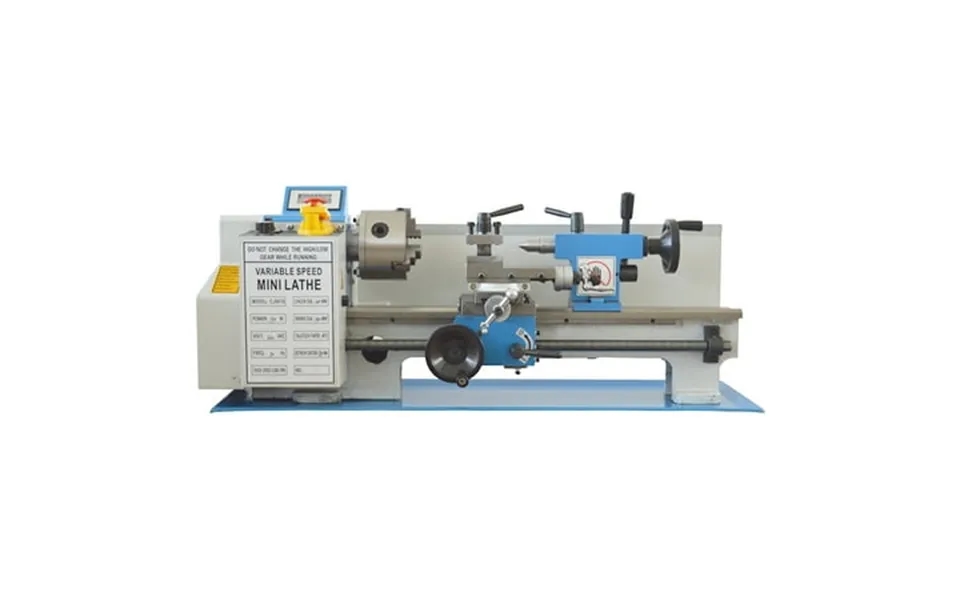

Product overview: miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example turning inside and outside cylindrical surface cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread.High power motor large spindle through hole and extended center distance can meet your various needs. Product parameters: model: cj0618-350 voltage: ac110v 60hz brushless motor power: 750w 1hp spindle bore: 1.26 32Mm centers distance: 13.78 350Mm swing over bed: 7.09 180Mm swing over cross slide: 4.33 110Mm chuck diameter: 3.94 100Mm knife rest labour: four spindle taper: mt3 tailstock taper: mt2 spindle accuracy: 0.01Mm metric thread: 0.5-2.5Mm spindle speed: 0-2250rpm cross slide travel: 2.56 65Mm top slide travel: 1.38 35Mm product size: 29.9 *9.4 *12.0 96*24*30.5Cm gross weight: 101lb 45.85Kg item included: 028333 cj0618 lathe * 1 fork wrench * 2 non-slip pads *4 metal gear *8 60 60 50 45 40 40 35 30 oil can * 1 set screw *4 hexagon wrench *5 chuck claw * 3 chuck wrench *1 english instruction manual *1
Brand: INTSUPERMAI
