Eqcotwea Precision Metal Lathe Metric Thread Brushless Motor Bench Lathe 8

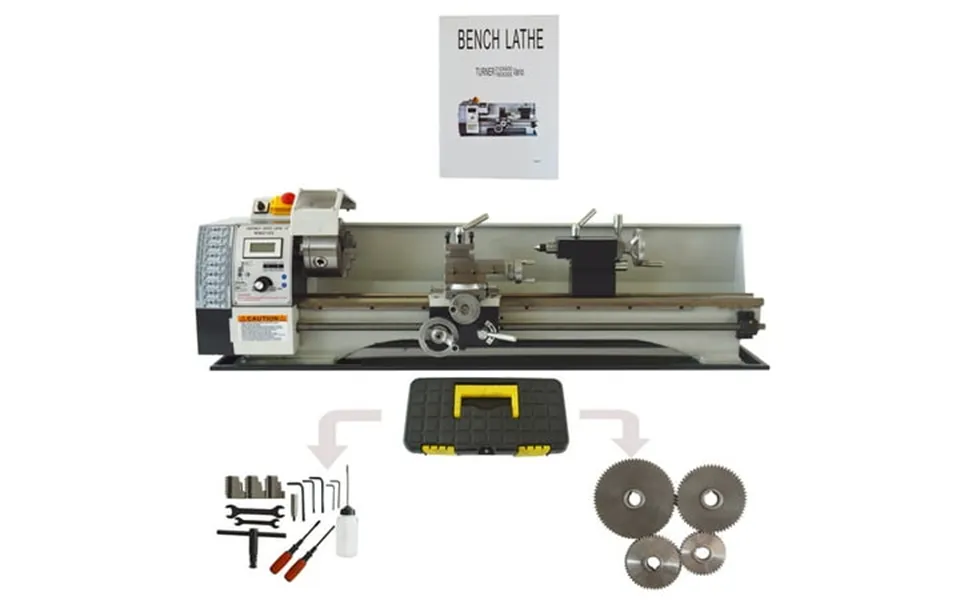

Introduction: miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example turning inside and outside cylindrical surface cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread. Parameters: model: wm210v motor: 110v brushless motor voltage: ac110v 50 60hz power: 900w length of center: 31.5 800Mm swing over bed: 8.3 210Mm rotary diameter of tool rest: 5.51 140Mm spindle bore: 1.50 38Mm diameter of chuck: 4.92 125Mm spindle taper: mt5 spindle rotation speed: 50-2500rpm range of metric threads: 0.5-3Mm precision of the spindle: 0.01Mm maximum stroke of tool rest plate: 2.16 55Mm maximum stroke of middle plate: 2.95 75Mm maximum stroke of bottom plate: 26.8 680Mm maximum stroke of tailstock sleeve: 2.36 60Mm tail frame taper: mt2 lathe sizes: 45.7 *13.0 *13.4 116*33*34Cm gross weight: 180.7Lb 82kg note:*we provide optional parts for this lathe. If you need please contact us*. Items included: 028201 eqcotwea precision metal lathe metric thread * 1 chuck jaw * 3 gear *4 40 50 60 72 the screwdriver * 2 open spanner *2 hexagon wrench *5 oil can * 1 the fuse * 1 chuck spanner *1 Brand: EQCOTWEA Size: []
