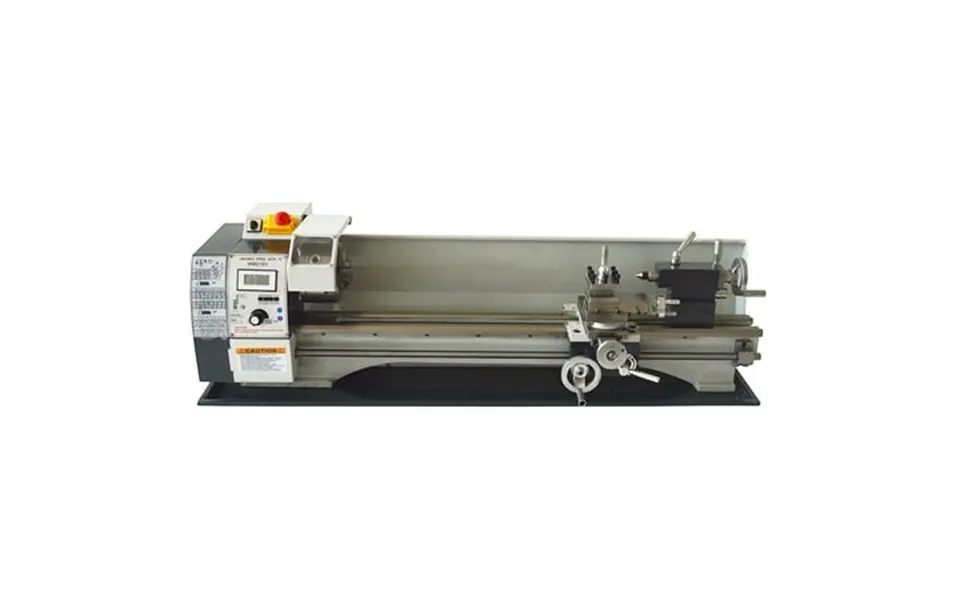

Eqcotwea Precision Metal Lathe Inch Thread Brushless Motor Bench Lathe 8 *32 Manufacturing Industry

Introduction: miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example turning inside and outside cylindrical surface cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread. Parameters: motor: 110v brushless motor voltage: ac110v 50 60hz power: 850w length of center: 31.5 800Mm swing over bed: 8.3 210Mm rotary diameter of tool rest: 5.51 140Mm spindle bore: 1.50 38Mm diameter of chuck: 4.92 125Mm width of lathe bed: 3.94 100Mm number of spindle speeds: infinitely variable speeds spindle taper: mt5 knife rest labour: horizontal four-station spindle rotation speed: 50-2500rpm range of inch threads optional accessory : 10-44t.P.I precision of the spindle: 0.01Mm automatic feed range: 0.1Mm-0.2Mm maximum stroke of tool rest plate: 2.16 55Mm maximum stroke of middle plate: 2.95 75Mm maximum stroke of bottom plate: 26.8 680Mm maximum stroke of tailstock sleeve: 2.36 60Mm tail frame taper: mt2 lathe sizes: 45.7 *13.0 *13.4 116*33*34Cm package size: 49.2 *18.9 *17.7 125*48*45Cm gross weight: 183lb 83kg items included: 028032 eqcotwea wm210v lathe * 1 chuck jaw * 3 the screwdriver * 2 open spanner *2 hexagon wrench *5 chuck spanner *1 oil can * 1 oil pan * 1 gear *11 75 72 70 66 60 60 52 50 48 40 30 the fuse * 1 Brand: EQCOTWEA Size: []

Introduction: miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example turning inside and outside cylindrical surface...show more
