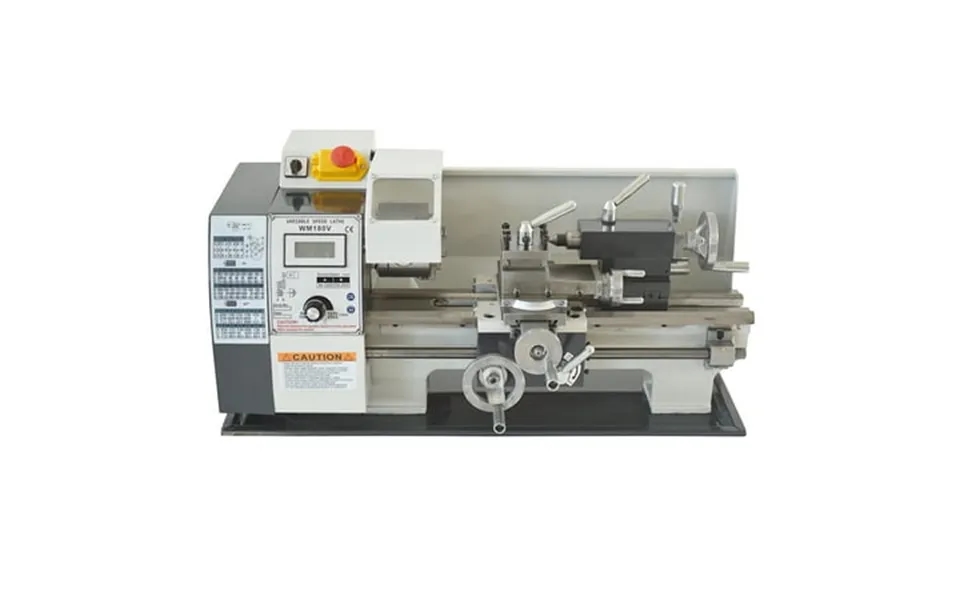

Introduction: miniature lathe is mainly used for processing the end face of various rotary surfaces and rotating bodies.For example turning inside and outside cylindrical surface cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread cone surface ring groove and forming turning surface turning end face and all kinds of commonly used metric thread. Parameters: model: wm180v motor: 110v brushless motor voltage: ac110v 50 60hz power: 600w length of center: 11.8 300Mm swing over bed: 7 180mm spindle bore: 0.83 21Mm diameter of chuck: 3.94 100Mm width of lathe bed: 3.94 100Mm number of spindle speeds: infinitely variable speeds spindle taper: mt3 knife rest labour: horizontal four-station spindle rotation speed: 50-2500rpm range of metric threads: 0.3-3Mm range of inch threads optional accessory : 10-44t.P.I precision of the spindle: 0.01Mm range of longitudinal feeds: 0.08Mm-0.16Mm automatic feed range: 0.1Mm-0.2Mm towing trip: 1.97 50Mm cross slide travel: 2.95 75Mm tailstock quill travel: 2.36 60Mm tail frame taper: mt2 lathe sizes: 27.9 *11.8 *13.0 71*30*33Cm package size: 35.4 *18.1 *17.7 90*46*45Cm gross weight: 150lb 68kg item included:028062 eqcotwea wm180v lathe * 1 chuck jaw * 3 the screwdriver * 2 open spanner *2 hexagon wrench *5 chuck spanner *1 oil can * 1 gear *7 30 48 50 52 60 66 70 the fuse * 1
Brand: EQCOTWEA
