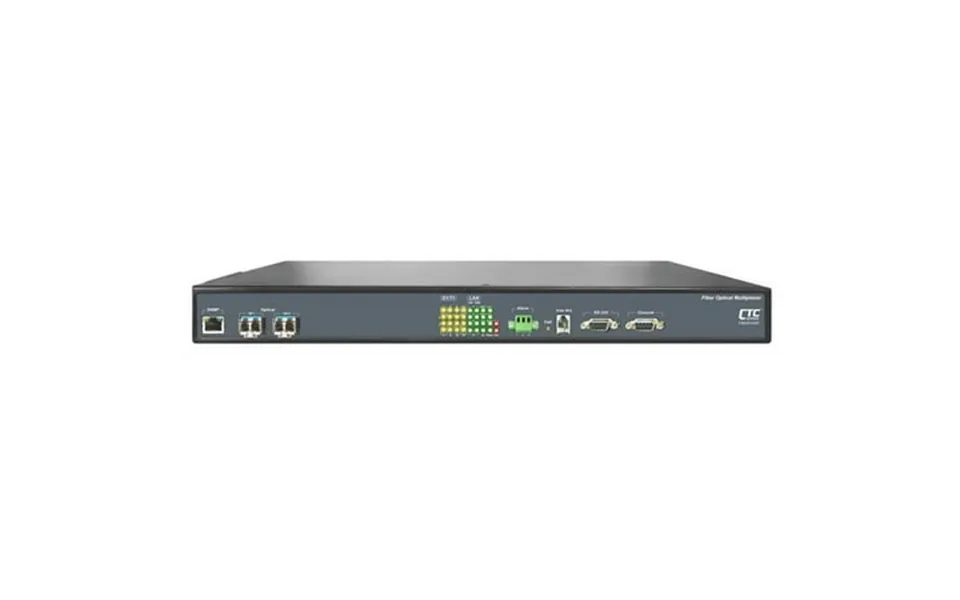

Fmux1600-ad - 16 E1 T1 With Full Gigabit Ethernet And Redundant Sfp Optic Link Fiber Optic Multiplexer

Ac and dc powered The fmux1600-ad fiber multiplexer bundles together up to 16 e1 or t1 interfaces and a full 1000mbps channel of gigabit ethernet data. It also offers an optional order wire port for e&m voice connections for service or troubleshooting between two units connected over the fiber . The fmux1600-ad offers redundancy on power source input supporting ac 90 240v and dc -18 -72v and on fiber connection by having two redundant sfp ports for 1.25Gbps optical modules. The sfp ports bring a great level of flexibility by allowing user to choose the appropriate sfp transceiver for his needs. The fmux1600-ad has built-in snmp support. The ethernet is available on four 10 100 1000mbps ports that can support separate port based vlans for physical separation of four ethernet networks. Jumbo packets up to 10k size are supported on the ethernet interfaces. Fmux1600-ad is a perfect choice for a variety of applications like wireless back-haul for remote areas e1 t1 and ethernet transport over same fiber inter building voice and data network connections and so on. Fmux1600-ad has built in e1 t1 interfaces. The console cli or snmp installed module allow full management of local and remotely connected unit. The fmux1600-ad equipment can be used either under european e1 or us t1 standards. The fmux1600-ad snmp management is accessible via ethernet on the local unit with ip address and can be by extended via fiber to the remote connected unit. The fmux1600-ad-snmp has the snmp mod... Brand: CTCUnion Size: []
