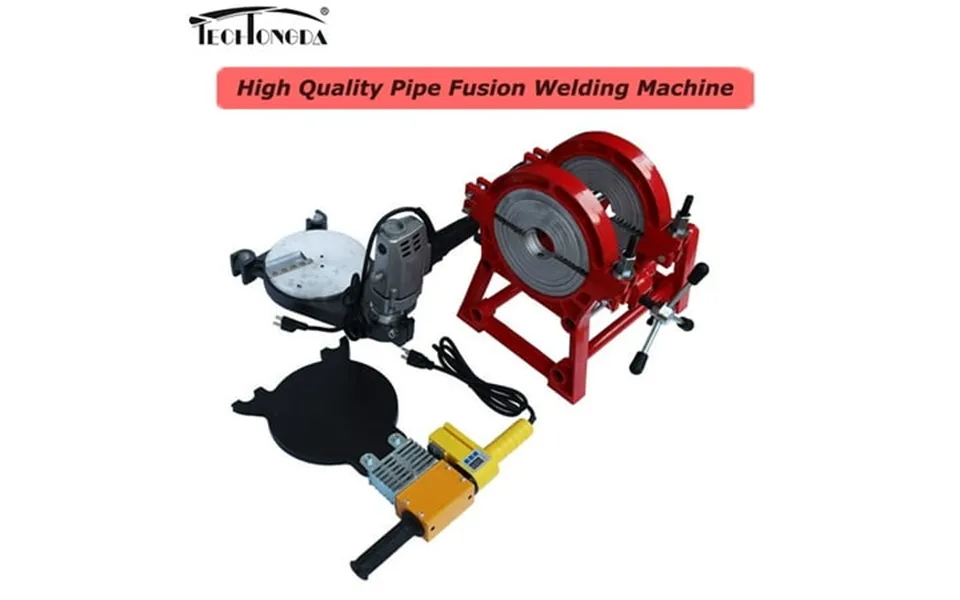

Techtongda Hdpe Butt Fusion Welding Machine 2 Clamps Pipe Fusion Welder With Timer 63-200mm

Description: manually operated hdpe butt fusion welding machine is suitable for pe and pp pipes and fittings. High quality design and construction provides an excellent machine for welding both on the worksite and in the factory. The use of high quality aluminum casting allows for lower weight without compromising strength and performance. Simple operation suitable for any complex working conditions. Notice two colors of heating plate are shipped randomly specifications: model 2.48-7.87 63-200Mm two rings manual with timer materials aluminum alloy casting 45 steel welding level mm 63mm 2.48 75Mm 2.95 90Mm 3.54 110Mm 4.33 125Mm 4.92 140Mm 5.51 160Mm 6.30 180Mm 7.09 200Mm 7.87 Docking deviation 0.3Mm power of heater 1.5Kw 110v milling cutter power 0.83Kw working temperature 0-300 c temperature deviation 5 c environment temperature -5 40 c time required to reach soldering temperature 20min materials can be welded pe pp pb pvdf features: 1. The welding process is short and efficient safe and reliable. 2. Easy to use lightweight practical. 3. Handle drive mechanism provides welding pressure stable transmission. 4. Motor gear drives milling cutter stable and accurate. 5. Excellent cost performance. Item include:145026 techtongda hdpe butt fusion welding machine 2 clamps pipe fusion welder with timer 63-200mm
