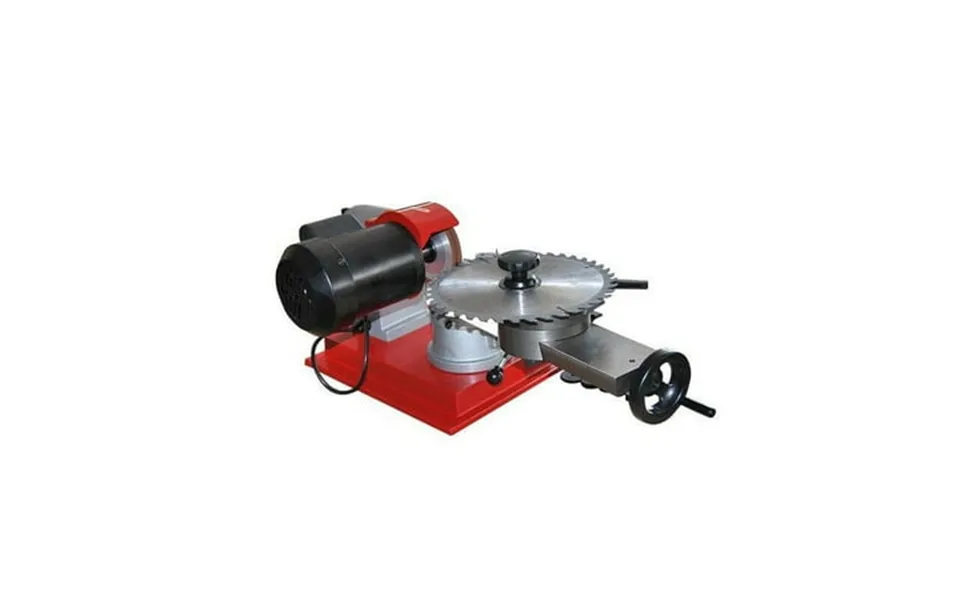

The machine is designed for sharpening various kinds of carbide tipped saw blades from size 80mm to 700mm. It s also suitable to grind other material such as plastic wood aluminum alloy for different purpose like furniture manufacturing decoration etc. Its fascia can support the teeth of saw blades and other parts in order to prevent jumping and improve grinding quality . Parameter: voltage: 110v if you need 220v please contact with us grinding wheel size: 4.92 12.5Cm bore size of grinding wheel: 1.26 3.2Cm adjusting range of grinding wheel: -20 degrees power: 250w handle turning angle: 30 degrees from left and 45 degrees from right revolution: 2850rpm product dimension: 28.35 X16.93 X11.81 72X43x30cm package dimension: 16.93 X16.93 X13.58 43X43x34.5Cm weight: 70.4Lbs 32kgs centering arbor size: 5 8 15.87Mm 0.79 20Mm 0.86 22Mm 1 25.4Mm 1.18 30Mm 1.57 40Mm method of operation first loosing the fascia then adjust the angle of grinding blade and fasten. Second adjusting of center axle 1 rotating the center axle to the grinding blade 2 pushing the center axle to the right 3 installing the saw blade rotate the wheel and decide the position of grinding surface saw teeth 4 rotating the rotation table to ensure the angle of grinding blade. 5 The cross angle between the grinding surface and work surface is about 5 . Third adjusting of positioning assembly. 1 Adjusting the saw blade to the best grinding position rotating the positioning frame and fascia 2 adjusting positioning pin ...
