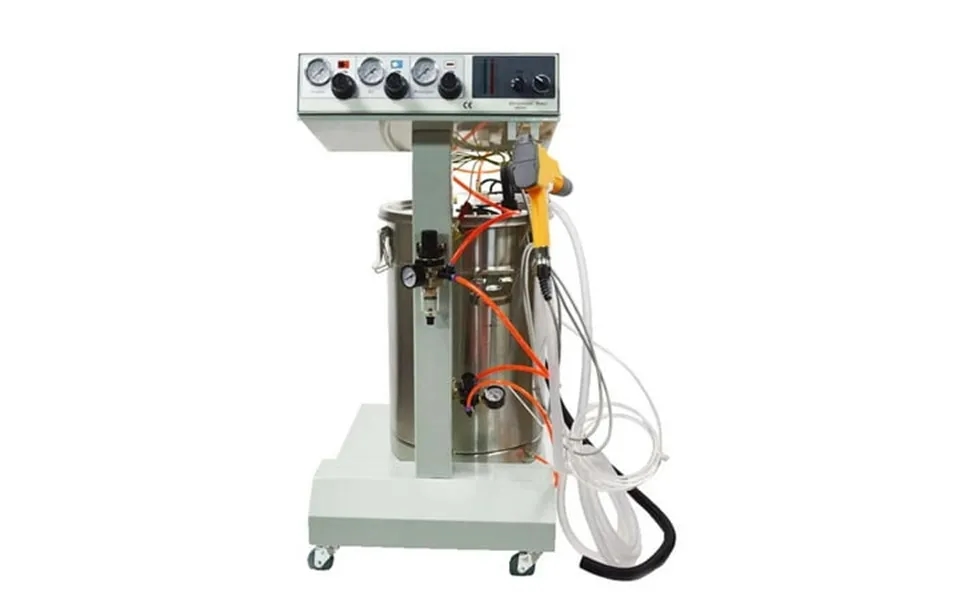

Description: powder coating is a dry finishing process using finely ground particles of pigment and resin that are generally electrostatically charged and sprayed onto electrically grounded parts. Parameter: electromagnetic valve control power voltage : 24v dc input air pressure: 0-0.6Mpa output air pressure: 0-0.5Mpa max. Air consumption: 13.2M h output powder volume: max. 500G min output power voltage: 0 -100kv polarity: negative output current: 0-150ua gun weight: 480g length of gun cable:4m powder hopper volume : 45l package size: 69*58*54cm 27.17*22.83*21.26Inch package weight: 29kg packing list: manual powder gun with gun cable x 1 powder gun spare parts x 1 kit control unit x 1 fluidized powder hopper x 1 powder injector x 1 trolley x 1 oil-water separator x 1 air pressure regulating valve x 1 powder hose air tubes grounding line: 1kit item included 251040 : techtongda one set wx-101 electrostatic powder coating machine 110v
