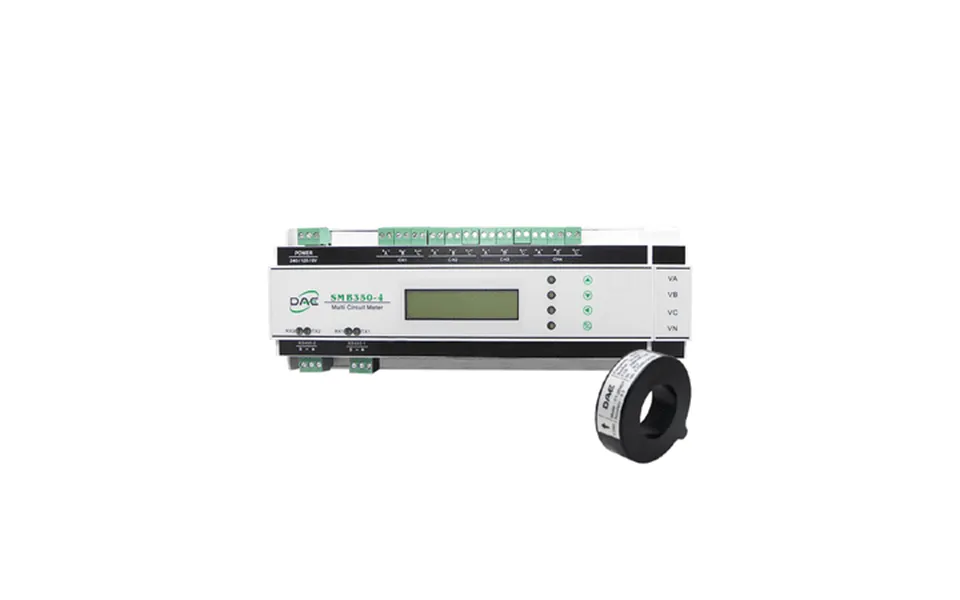

Dae Smb350-ul-4-b Kit Ul 12 Channels Multi-circuit Multi-function Electric Monitor With 12 200a Cts 1

Monitor up to 12 single phase circuits or 4 separate 3-phase circuitsrs485 modbus rtu protocol format: 8 n 1 address: 1 254 default: last 2 digits of serial number baud rates: 1200 2400 4800 9600 bps default: 9600 max voltage : 350 vac hot wire to neutral 600 vac hot wire to hot wire frequency : 50 or 60 hz.Display kwh real time kw volts amps power factor apparent power kva reactive power kvar reactive energy kvarh frequency.Auxiliary power: ac 120 or 240v 10%2 lines 16 characters lcd display for easy set-up and programing.Depending on your electrical system you will need: 1 ct for each 120v 1 phase 2 wire 1 hot wire 1 neutral circuit 1 ct for each 240v 1 phase 2 wire 2 hot wires circuit 2 cts for each 120 240v 1 phase 3 wire 2 hot wire 1 neutral circuit 2 cts for each 208v or 480v 3 phase 3 wire 3 hot wire no neutral circuit 3 cts for each 120 208v or 277 480v 3 phase 4 wire 3 hot wire 1 neutral circuit.Non-volatile memory the stored data is maintained through power outages.No conversion factor or multiplier requiredoptional split core ct dae ct-100s ct-200sb ct-400s ct-600s .Compatible with touch panel like dae acs35 see dae website for details for remote display.Current transformers cts are not direction sensitive. It does not matter if the contractors install the cts with wrong direction of current. Dae meters can detect it and compensate it.Dae’s cts are exactly the same and exchangeable among all the meters including polaris 1000 1500 2000 2500 3000 and smb 350 mult...
