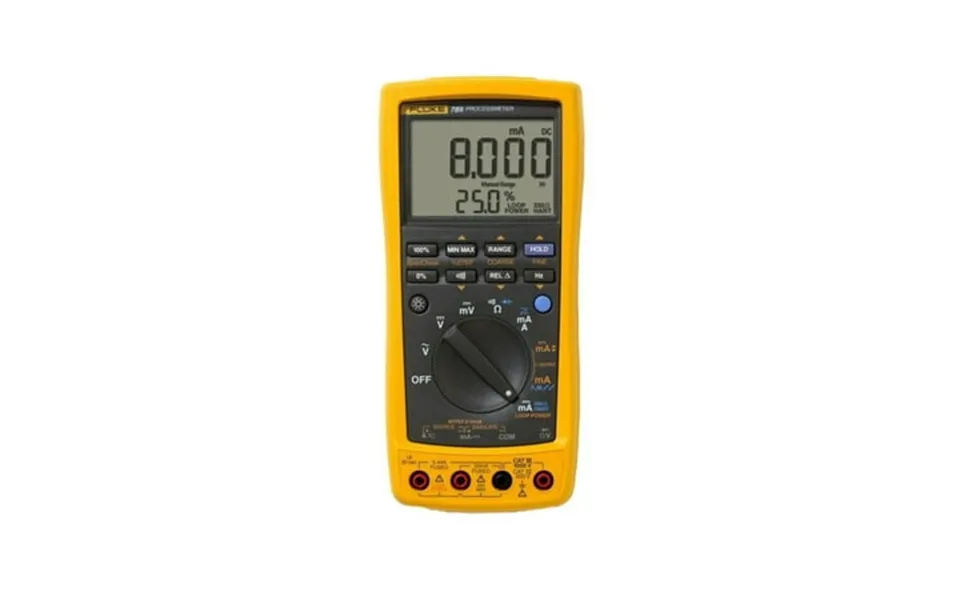

A maintenance and calibration tool that will be at home in every instrumentation technicians tool box the fluke 787 process meter combines a dmm and a loop calibrator in one rugged handheld tool for about what you would expect to pay for a loop calibrator alone. Based on the trusted fluke 87 dmm the 787 adds the ability to measure source and simulate dc loop current with 0.05 Percent accuracy and 1 ma resolution. 1000V overload protection on v ohms frequency and 150v overload protection on ma backed up by a 440 ma 1000v fuse runs about 50 hours typical measurement 12 hours typical sourcing 12 ma on one 9-volt alkaline battery clear lcd display with backlight current measurement range: 0 to 30 ma dc 24v loop power supply 25-percent manual step plus auto step and auto ramp on ma output built-in selectable 250-ohm hart resistor 0 and 100-percent buttons to toggle between four and 20 ma sourcing for a quick span check very large dual display with enhanced backlight with 2 brightness settings
