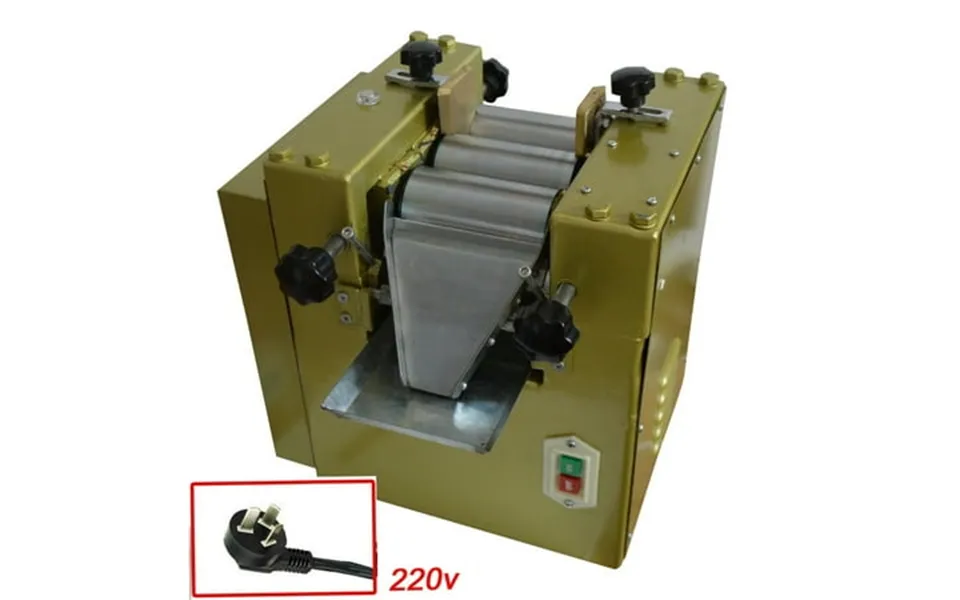

Preasion Three Roll Grinding Mill Grinder Roller Machine Lab Pigment Grind 220v

Performance feature: please notice when grind white object this machine need to change plastic orifice plate. Any problems please contact us. The machine is mainly used to grind various paint ink paint pigments paints food cosmetics and other paste materials. The machine has become the main equipment of abrasive material. Three rollers of the machine with chilled alloy casting thickness of chilled alloy layer is 15 25 Mm surface hardness is hs68 75. After grinding for once or several times finally achieve the required fineness about 3 to 18 microns in general to fineness determination . Three-roll mill consists of seat the guide cover the roll shaft housing feeding copper knife the riving knife plate the cooling means and gears pulleys etc. Product parameters: voltage 220v roller diameter :65mm 2.55Inch roller working face length: 125mm 4.92Inch roller speed:32 slow 89 medium 250 fast roller speed ratio :1:2.8:7.8 Model of motor:ys7144 power of motor: 0.75Kw speed of motor: 1400rpm 1.Machine construction 1 transmission systems 2 moving parts 3 the roller 4 loading parts maintly consists of two copper knife and copper knife holder. Prevent grind maerial to both ends overflow. 5 Cooling parts 6 adjustment parts 7 discharging device by adjusting the pressure screw on the blade the incision should be slightly higher than the center of the roll this makes it easy scraped the materials attached to the roller surface. 2.Note: 2.1 Before work: keep the roller surface clean lubri...
