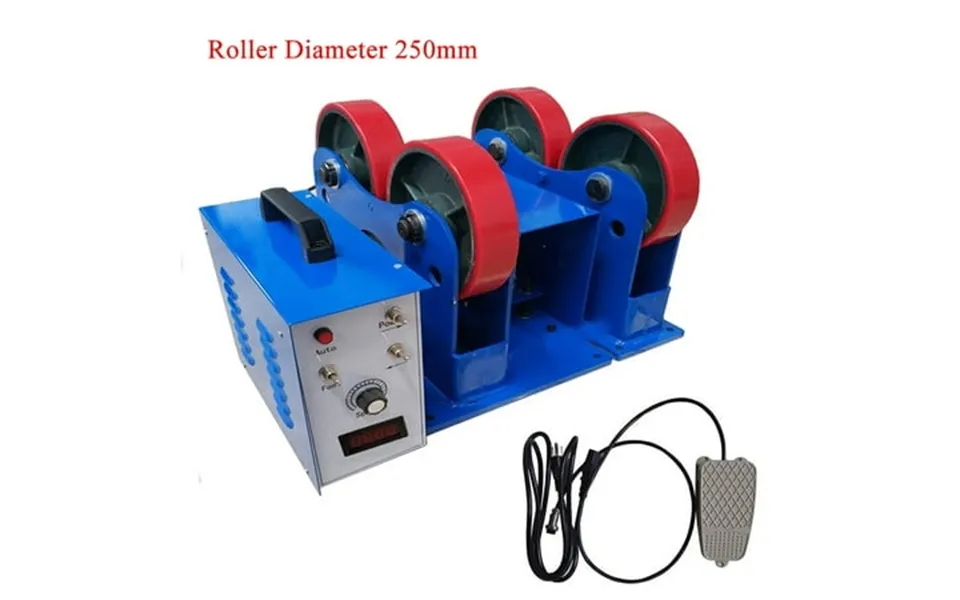

Preasion Welding Tank Turning Rolls Welding Positioner Welder Roller Dia250mm

Connected welding roller rack is composed of base driving roller driven roller bracket transmission device power unit drive etc. It is a professional welding assistant equipment can be matched to welding operation machine and submerged arc welding machine etc. The machine mainly applied to pipeline welding include inside and outside of the pipe. Parameter voltage: 110v frequency: 60hz load capacity: 2200 lbs 1t working speed: 80 1100 mm min roller type w*d : 1.97*9.84Inch 50mm*250mm roller material: polyurethane diameter range:0.79 31.5Inch 20 800mm operation method: control box operation active wheel size: 19.69*11.81*15.75Inch 500*300*400mm machine active weight: 132.27Lb 60kg machine driven weight:66.14Lb 30kg attentions: 1.For safety reasons must be connected to a reliable safety grounding device must have three feet with ground connection. 2.Not suitable for argon arc welding. 3. Unplug the power cable cord if the machine will not be used in a long time. 4.Do not exceed the maximum load-bearing range of the machine. 5.Not recommended to use this machine for parts that are too fine. 6.Do not use hands to stop the roller when the machine is working item included: 022454 preasion welding tank turning rolls welding positioner welder roller dia250mm
