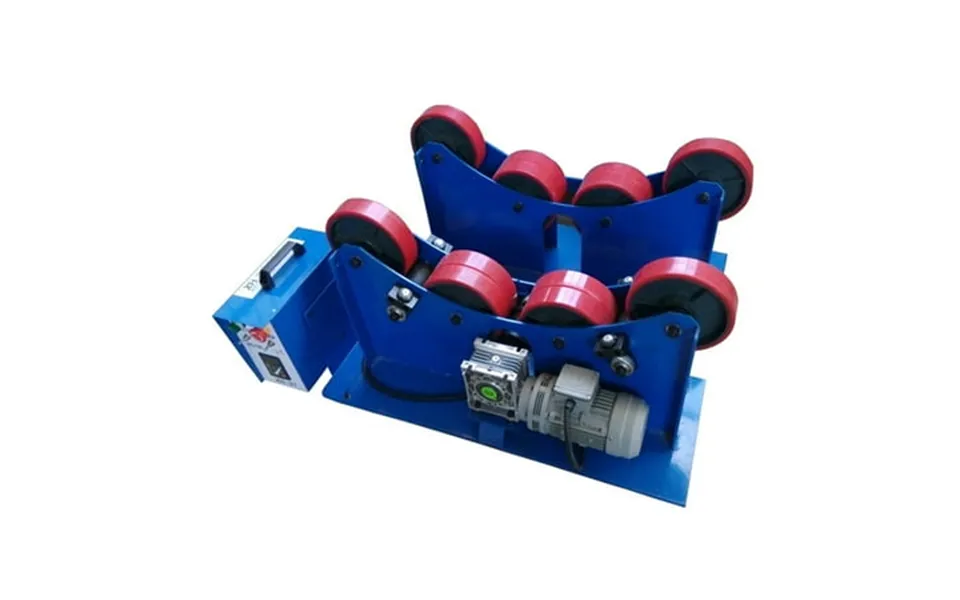

Intbuying Welding Turning Rolls Linkage Roller Rack Welder Support 6600 Lbs 3t

The connected welding roller rack is a professional welding assistant equipment it can realize the horizontal position welding of the inner and outer circumferential seams and the inner and outer longitudinal seams of the workpiece. Can be used with a torch holder for fixing and flexible adjustment of the relative position of the welding torch and the welding seam. Applied to pipeline welding including inside and outside of the pipe. Suitable for pipe plasma flame cutting pipe flange welding surface grinding and spraying etc. Parameter model: xh-3t voltage: 110v frequency: 60hz power: 370w load capacity: 6600 lbs 3t working speed: 150-1000 mm min roller diameter: 7.87Inch 200mm roller width: 1.97Inch 50mm roller material: tpu applicable workpiece diameter: 2.76 47.2Inch 70 1200mm operation method: control box operation size: 31.89*25.98*17.32Inch 810*660*440mm net weight active driven : 153kg attentions: 1.Needs to be connected to a reliable safety grounding device must have three feet with ground connection. 2. Do not exceed the maximum load-bearing range of the machine. 3. Not recommended to use this machine for parts that are too fine. 4. Not suitable for argon arc welding. 5. Unplug the power cable cord if the machine will not be used in a long time. 6.Do not use overcharged voltage 7.Do not use hands to stop the roller when the machine is working item included: 022526 intbuying welding turning rolls 3t *1 foot switch*1 control box*1

The connected welding roller rack is a professional welding assistant equipment it can realize the horizontal position welding of the inner and outer circumferential seams...show more
