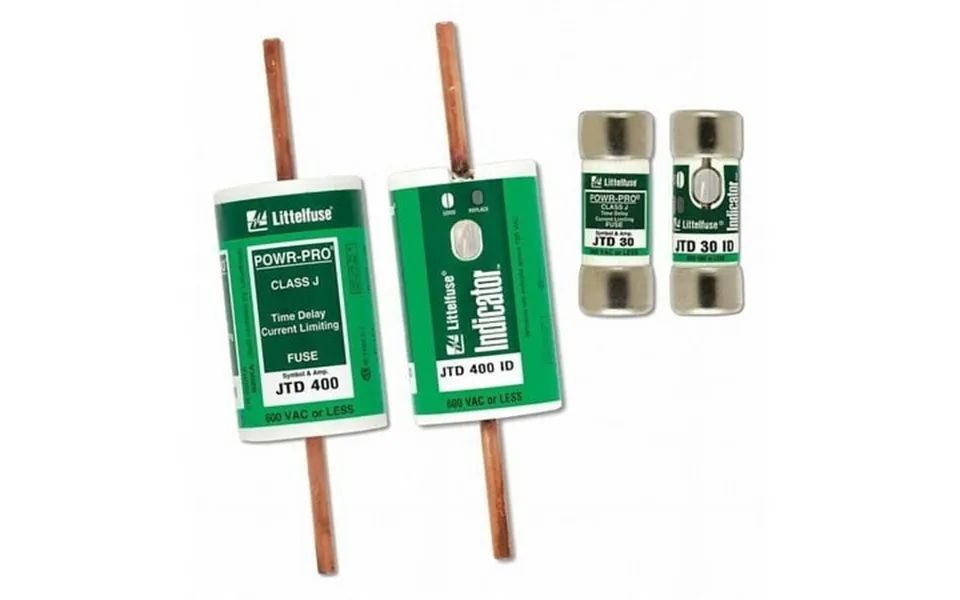

Littelfuse Fuse Class J 90a Jtd Series Jtd090

Littelfuse 0jtd090.V powr-gard time delay fuse littelfuse powr-gard time delay fuse current limiting series: jtd non-indicating 90 a 600 vac 300 vdc 200 20 ka interrupt class: j knife blade terminal holder mounting cartridge body dual element melamine 1-1 8 in dia x 4-5 8 in l body additional description: ltfs-jtd090 0jtd090.V fus 600v t d class j 90a fuses 90 amp size catalog description: the littelfuse powr-pro jtd id indicator class j fuse provides visual blown fuse indication and maximum protection in a compact package. The compact class j package was designed specifically for circuits where space is at a premium. The current limiting time delay jtd id offers a patented true dual-element design that is ideal for use in circuits with high inrush currents. Superior performance characteristics of jtd id indicator fuses reduce nuisance fuse opening and the blown fuse indication reduces downtime and increases safety.
