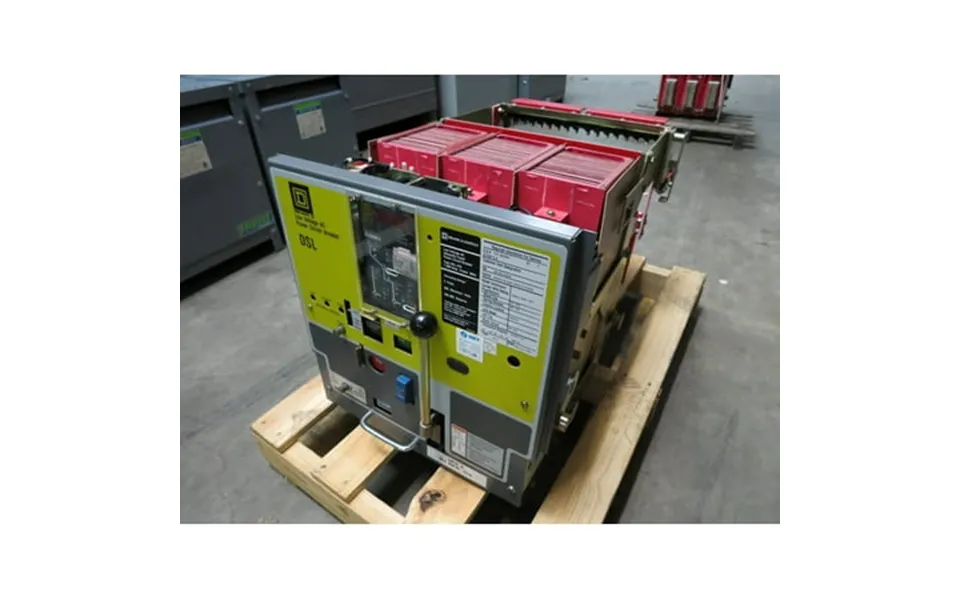

Square D Dsl-416 1600a Lsig Eo Breaker Digitrip Rms 810d Westinghouse Dsl416

Air breaker with 1600a frame and 1600a sensor square d powerlogic digital protection digitrip rms 810 d catalog number: d86lsig d
Lsig trip functions shunt trip: 48 vdc
Spring release: 48 vdc ots reset: manual
Motor circuit: 48 vdc connection diagram: 44025-167 6a 18a 3b 10c 2c 18d 4l fuse style: cutler-hammer dsl limiter 6dsl-d3000
