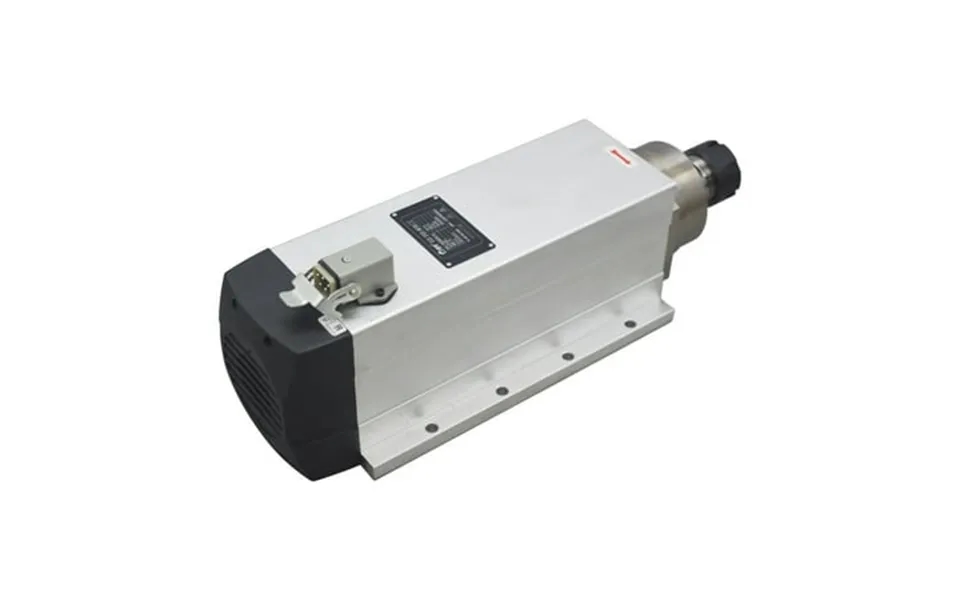

Techtongda Er32 Square Spindle Motor High Speed Motor For Engraving Machine With Flanged 220v 7

Product overview: spindle motor has the advantages of fast speed small volume lightweight low material consumption low noise low vibration.It is widely used in wood aluminum metal stone metal plastic and other materials carving processing widely used in many industries can greatly improve the processing quality and accuracy. Product parameters: voltage: 220v power: 7.5Kw 10hp current: 30.09A operating frequency: 300hz collet nut: er32 clamping range: 0.118 -0.787 3Mm-20mm standard with 6mm collet if you need other sizes please contact us clamping diameter of collet: 0.236 6Mm motor speed: 18000rpm cone hole beat: 2um cooling mode: fan cooling lubrication mode: grease lubrication fuselage material: pure aluminium packing size: 20.1 *9.1 *8.7 51Cm*23cm*22cm net weight gross weight: 37.5Lb 17kg 39.0Lb 17.7Kg note: spindle motor must be equipped with frequency converter.Set up frequency converter correctly according to machine requirement. The item is not included frequency converter. Matters need attention: Must match the drive spindle chosen correctly according to the electric spindle nameplate good debugging power voltage and frequency. Set the frequency converter should be set command channel and then set the display channel and finally set the parameters. When setting parameters be sure that the reference frequency the frequency of the three highest rated frequency and consistency. The spindle is generally clockwise in the wrong direction the drive can change settings...
