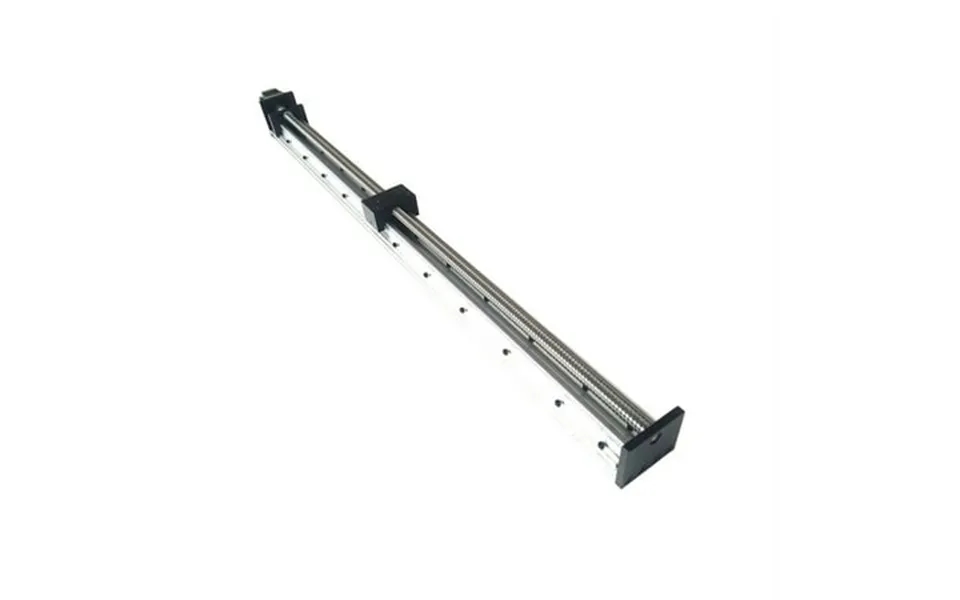

Techtongda 1000mm 1610 Motor Ball Screw Cnc Linear Slider With 57 Steper Motor

Parameter slide stroke:1000mm materials:aviation aluminum color:silver black total length: 1120mm excluding the length of motor total height: 72 mm width 80mm the number of sliders:1 accuracy: 0.05Mm ambient temperature:-10 -50 screw specifications: ball screw 1610 16 represents the diameter of the screw 10 represents the lead pitch of the screw rod the distance that the motor moves when the motor rotates once guide rail diameter: 16mm motor: 57 stepper motor dc24v item included: 054409 techtongda motor ball screw 1610 cnc linear slider with 57 steper motor

Parameter slide stroke:1000mm materials:aviation aluminum color:silver black total length: 1120mm excluding the length of motor total height: 72 mm width 80mm the number of sliders:1...show more
