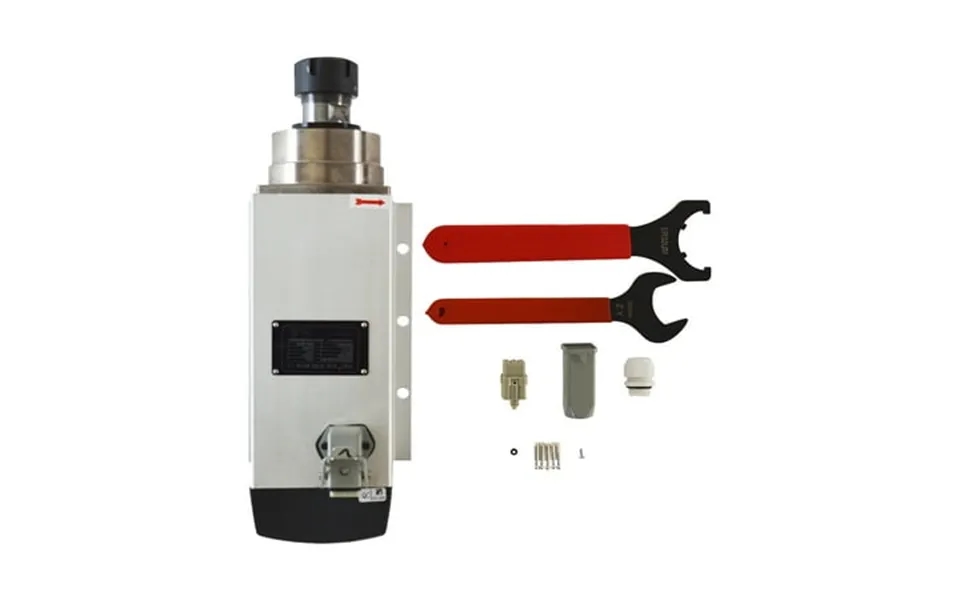

Eqcotwea Square Spindle Motor 220v With Flange For Material Engraving 4

Parameters: voltage: 220v power: 4.5Kw 6hp current: 20.45A operating frequency: 300hz collet nut: er32 clamping range: 0.118 -0.787 3Mm-20mm standard with 6mm collet if you need other sizes please contact us clamping diameter of collet: 0.236 6Mm motor speed: 18000rpm cone hole beat: 2um cooling mode: fan cooling lubrication mode: grease lubrication fuselage material: pure aluminium product size: 14.8 *5.4 *6.1 37.5Cm*13.7Cm*15.5Cm net weight: 29.1Lb 13.2Kg items included: 053288 eqcotwea square spindle motor 220v with flange for material engraving spindle motor *1 fork wrench *1 collet wrench *1 note: spindle motor must be equipped with frequency converter.Set up frequency converter correctly according to machine requirement. The item is not included frequency converter. Matters need attention must match the drive spindle chosen correctly according to the electric spindle nameplate good debugging power voltage and frequency. Set the frequency converter should be set command channel and then set the display channel and finally set the parameters. When setting parameters be sure that the reference frequency the frequency of the three highest rated frequency and consistency. The spindle is generally clockwise in the wrong direction the drive can change settings or swap any two rotating wire the inverter output uvw terminal on. In general water-cooled spindle surface temperature and ambient temperature greater than 20 degrees the heat can be considered a spindle when air-coo...
