Eqcotwea Hdpe Subgrade Reinforcement Ground Grid Honeycomb Geocell 8

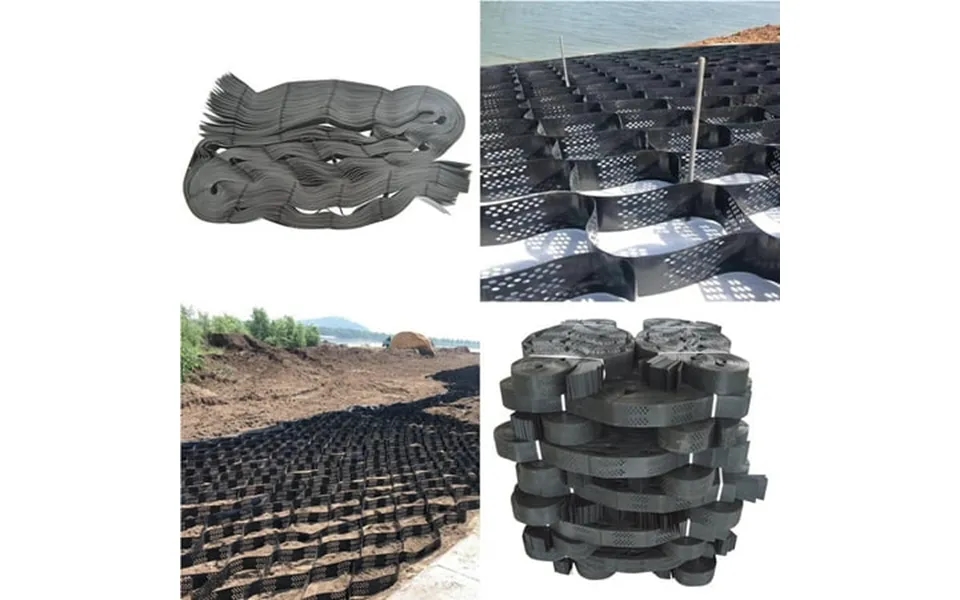

Product overview the geocell is a mesh cell structure formed by high strength hdpe broadband after strong welding. It can be folded up when the use of the filling of stone or concrete with a strong lateral constraints and stiffness of the structure. Can be used as a cushion to increase the bearing capacity of soft foundation or laid on the slope to form a slope protection structure. Product parameters: the expanded dimensions: 8.2Ft*19.7Ft*3.94 2.5M*6m*0.1M material: high density polyethylene hdpe welding torch: 15.7 40Cm thickness between the grids: 0.06 1.5Mm dimensions of each grid l * w : 7.87 *7.87 20Cm*20cm welding point tension: 10kn color: black packing size: 37.4 *29.9 *5.5 95*76*14Cm gross weight: 38.6Lb 17.5Kg items included: 056025 eqcotwea 4 ground grid honeycomb geocell permeable pavers hdpe 8.2X19.6Ft note: if you need other sizes you can contact us for customization
