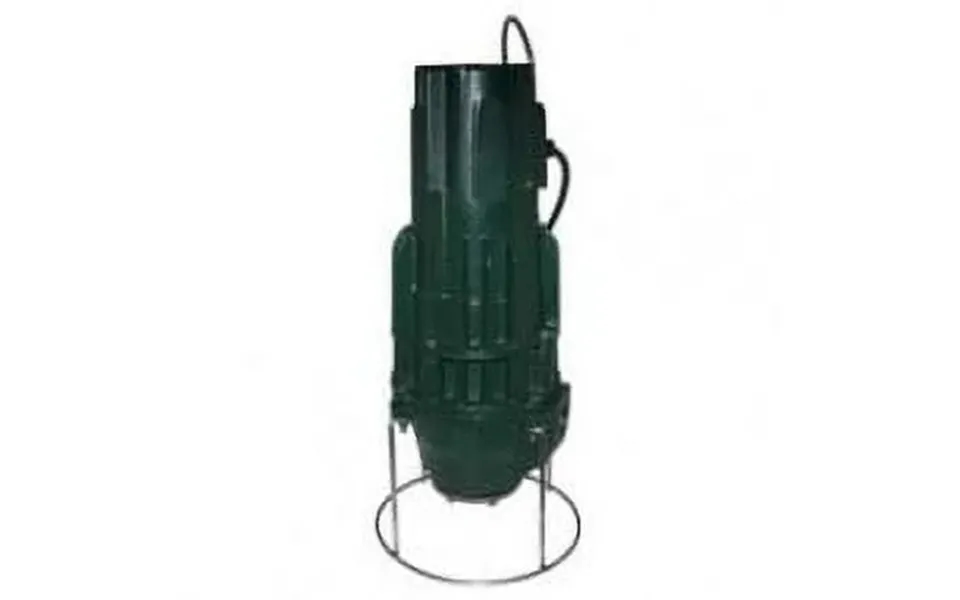

Zoeller 810-0008 Model E810 Shark Series Grinder Pump 1 Hp 230 Volts 1 Phase 1-1 4 Npt Discharge 15 Gpm Max 240 Ft Max H

Zoeller e810 progressing cavity grinder pump this cavity grinder pump is designed for grinding and pumping sanitary sewage from submersible lift stations. The pump is intended to grind and pump reasonable quantities of items normally found in sanitary sewage applications. It can be installed in new applications or as a direct replacement for any grinder application of like size and capacity. It also can be installed in a prepackaged job ready system or may be used in a field assembled basin package. This unit can be retrofitted to existing positive displacement pump installations. Specifications: brand: zoeller mfg. Number: 810-0008 model: e810 series: shark 810 product type: grinder pump application: progressing cavity horsepower: 1 hp voltage: 230 volts operation: manual phase: 1 frequency: 60 hz speed: 1750 rpm discharge connection: 1-1 4 npt insulation class: b pump housing: cast iron impeller design: hydraulic rotor current: 6.0 10.5 Amps impeller material: stainless steel maximum total head: 240 ft maximum flow: 15 gpm power cord length: 50 ft overload protection: yes maximum fluid temperature: 130 f
