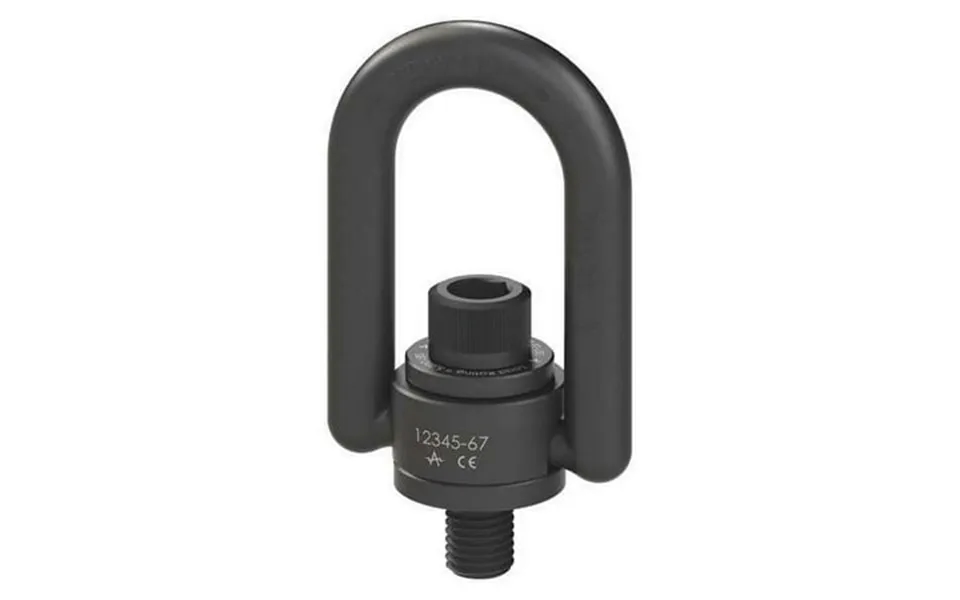

Adb Hoist Rings Hoist Ring 1 3 8 -6 Thread 20 000 Lb 33420

Hoist ring movement type pivot swivel material alloy steel mount type screw-on working load limit 20 000 lb thread size 1 3 8 in.-6 Operation lifting pulling pivot angle 180 degrees swivel angle 360 degrees usable thread length 2 5 8 in bail inside length 3 5 8 in bail inside width 3 3 4 in bail thickness 1 1 4 in overall length 6 3 4 in overall width 6 3 4 in hardware included removable bolt minimum installation torque 670 ft-lb finish black oxide

Hoist ring movement type pivot swivel material alloy steel mount type screw-on working load limit 20 000 lb thread size 1 3 8 in.-6 Operation...show more
