Product Information

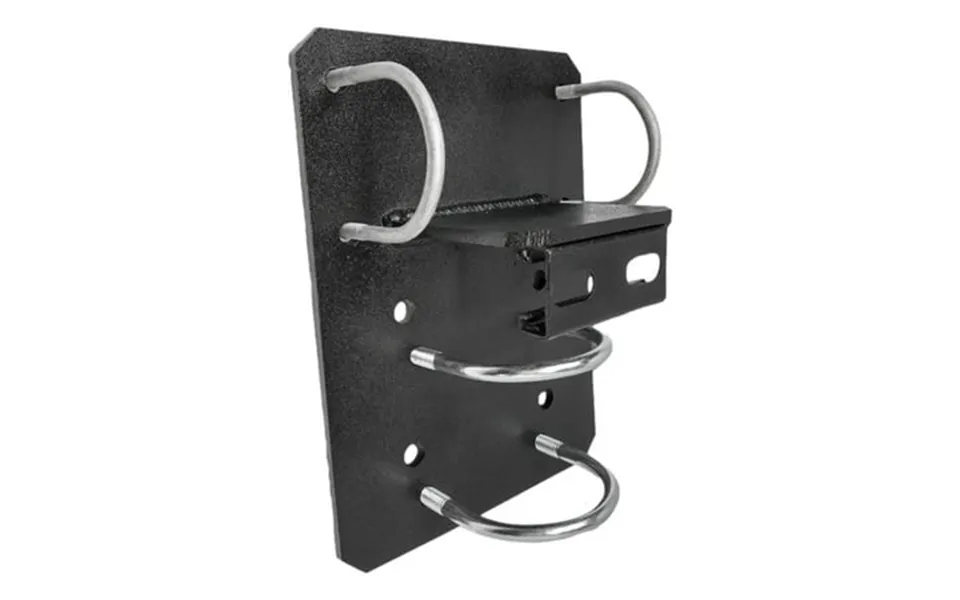

Our gridless revolution heavy duty solar panel mounts are designed to help you get the maximum life out of your solar panels. Most solar panels have a lifetime around 25 years so we know you need a mount that s up to the task. Heavy duty 1 4 steel welded in usa and coated with a tough industrial paint these mounts will make any ground solar array very solid. Easy to install the bracket simply u bolts supplied to your ground mounted pipe not supplied . A 2 pipe not supplied can then be u bolted supplied to the bracket and rails supplied attached. Design features: all hardware and rails included the only thing you supply is the ground pipe and the 2 pipe built to last welded in usa from heavy duty steel. Strut channel welded to the front to bolt a wiring junction box. Easily adjust the angle of your panels. Assemble in minutes after ground pipe is installed . Pipe sizes: the bracket included in this set can mount to all of the following ground pipe sizes: 2 pipe: 2-3 8 o.D. Sch 40 sch80 or 2-1 2 pipe: 2-7 8 o.D. Sch 40 sch80 or 3 pipe: 3-1 2 o.D. Sch 40 sch80 included items bracket only : 1 mount bracket 4 2 pipe u bolts for holding the horizontal pipe 2 2-1 2 pipe u bolts 2 3 pipe u bolts included items bracket and rail kit : items in the above bracket only list 4 60 l strut channel see photo for dimensions 4 2 pipe strap brackets to attach rails 16 sets of hardware to mount panels to rails typical recommended number of solar panels: 3 large 325w panels 4 small 100w panels...
