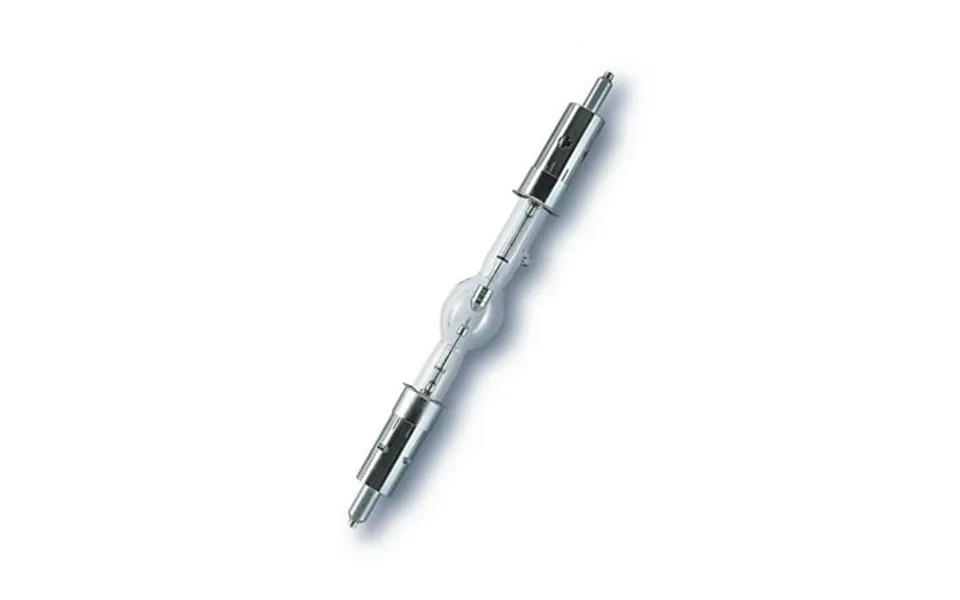

Osram 69242 xbo 450w xenon short arc discharge lamps are intense point sources that provide a broad continuous spectrum and have a near perfect color rendering in the visible range with an index greater than 95. This makes them an ideal choice for fiber illumunation devices for medical scientific and even industrial areas. In particular surgical devices that benefit from the accurate color rendering and intense beam of the xbo light source. Osram has been producing reliable high quality xbo lamps for over 60 years. Key features and benefits
High luminance radiance with intense point source
Broad continuous spectral distribution
High color rendering 95
High arc stability
Dc operation abbreviation name xbo450w1 application microscopy average luminance cd cm2 45000 average rated life
Horizontal hr 800 base special double ended base anode sfa20-8 base cathode sfa20-10 warranty hours 800 bulb ko136 class c gas color rendering index cri 98 color temperature k 6000 cooling required current a 25 current control range a 17-30 diameter d in 1.142 Diameter d mm 29 distance a mm 95.5 Family brand name xbo hot restart yes lamp finish clear length l1 max. Mm 260 length l2 max. Mm 212 light center length
Lcl mm 95.5 Luminous area w x h mm 0.7 X 2.2 Luminous flux lm 13000 luminous intensity cd 1300 maximum base temperature c 230 maximum overall length
Mol mm 260 nominal voltage v 17 nominal wattage w 450 operating position s 100 reflector coating 29 type of current dc ca prop 65 ...
