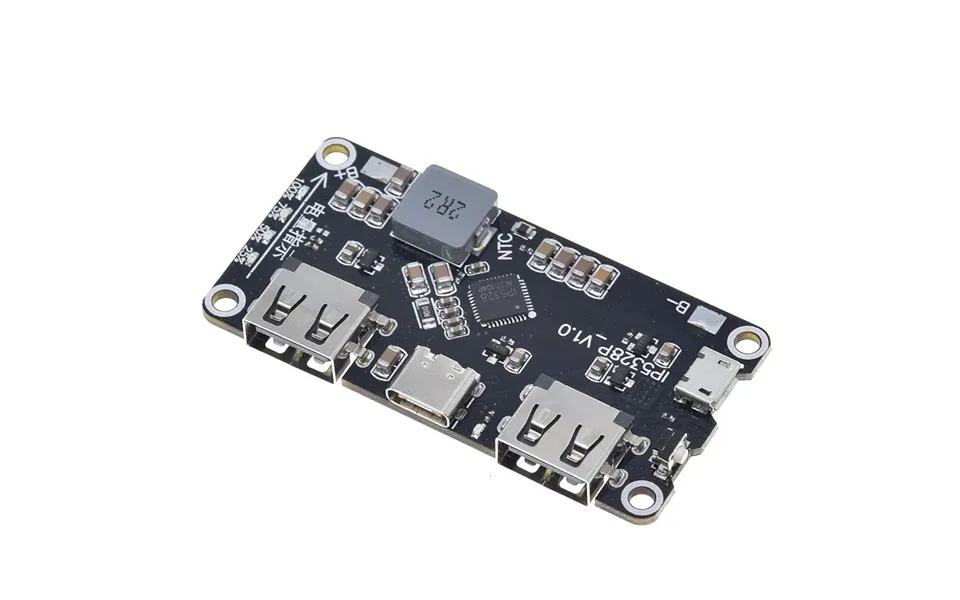

Ip5328p Dual Usb 18650 Battery Charger Board Mobile Power Motherboard 3

Description adopt yingjixin ip5328p mobile power solution four layer immersion gold board optimized layout and wiring support multiple fast charging protocols two way 18w fast charging can support a total of 4 charging ports 2 usb a output ports 1 usb c interface 1 micro usb interface 4 interfaces support fast charging of which 2 usb a ports support qc3 0 fcp afc mtk sfcp fast charging output power up to 18w support apple for samsung bc1 2 protocol the usb c port supports usb pd two way fast charging and is compatible with fcp afc sfcp fast charging input and qc3 0 fcp afc mtk sfcp fast charging output microusb supports fcp afc sfcp fast charge input specifications size 65mm 32 5mm ultra thin four corner hole diameter 3mmoutput interface usba usba type c supports fast charging output see the specification for the fast charging protocol input interface micro type c supports fast charging input see the specification for the fast charging protocol battery type 3 7v battery aggregate or 18650 lithium battery connected in parallel the capacity is not limited the larger the capacity the longer the charging and discharging time please add a protection board for the battery the main board has positive and negative poles the battery cannot if you connect it backwards you will be responsible for the consequences of burning the motherboard fast charge indication input and output high voltage fast charge indicatorconversion efficiency 9
