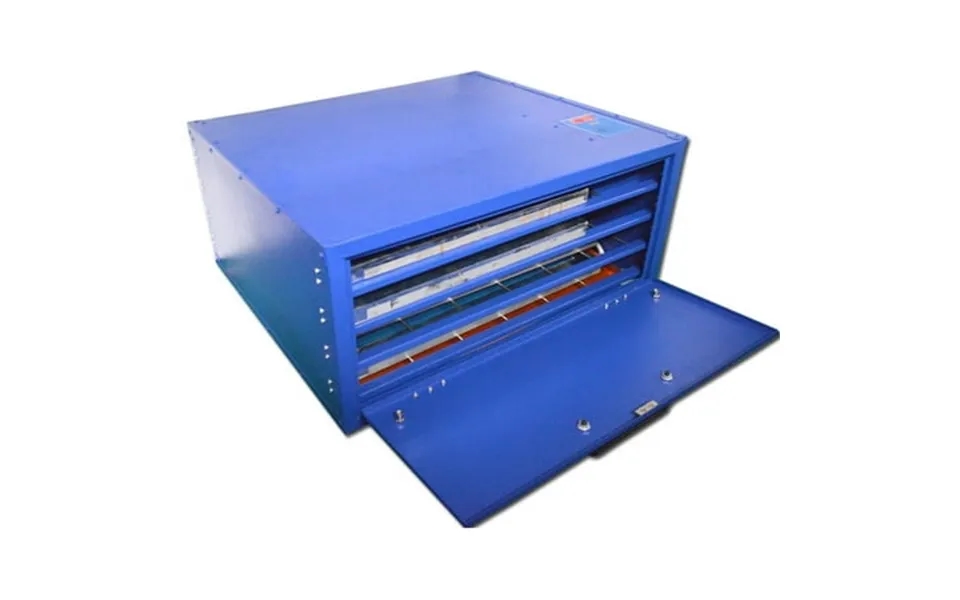

Intbuying Screen Drying Cabinet 4 Layers Screen Printing Equipment Temperature Control Plate Heating Drying Machine

Screen drying cabinet is an important tool in screen printing. Several procedures need a screen drying cabinet like degreasing screen coating emulsion coating hardener washout and so on.This machine gives up traditional heating pipe technique to adopt advanced and safe flate carbon fiber heating plate. Professional design energy saving safe and easy manipulation used for drying screen shading light proofing dust and so on. After redesign this cabinet has a smaller volum will be cheaper and easier to ship than the old type. Wooden case prevent to be damaged in transit. Top 2 layer max screen frame size : 23 x21 58x55cm . The top layer need to put in the screen frame in vertical direction. Lower 2 layer max screen frame size : 25 x23 62x58cm . Voltage :110v power :800w machine size :27.9 X24 x12.2 71X61x31cm packing size :32.6 X27.9 X15.7 83X71x40cm net weight :80lb 36kg shipping weight :88lb 40kg note: the shipping cost is calculated by it s shipping volume. Instructions 1. Turn on the switch then the machine will indicate f000 and the air fan works automatically. 2. Press until to f070’ 3. Place thermometer probe on the third drawer check the temp after five minutes. 4. If the temp is not right in your need you can press or - to increase or reduce 10 grades awaiting five minutes then check the temp. 5. After adjusting the available temp the machine will automatically save and memory your set data. 6. It is normal that the f or o displays alternately when the machine is wo...

Screen drying cabinet is an important tool in screen printing. Several procedures need a screen drying cabinet like degreasing screen coating emulsion coating hardener washout...show more
