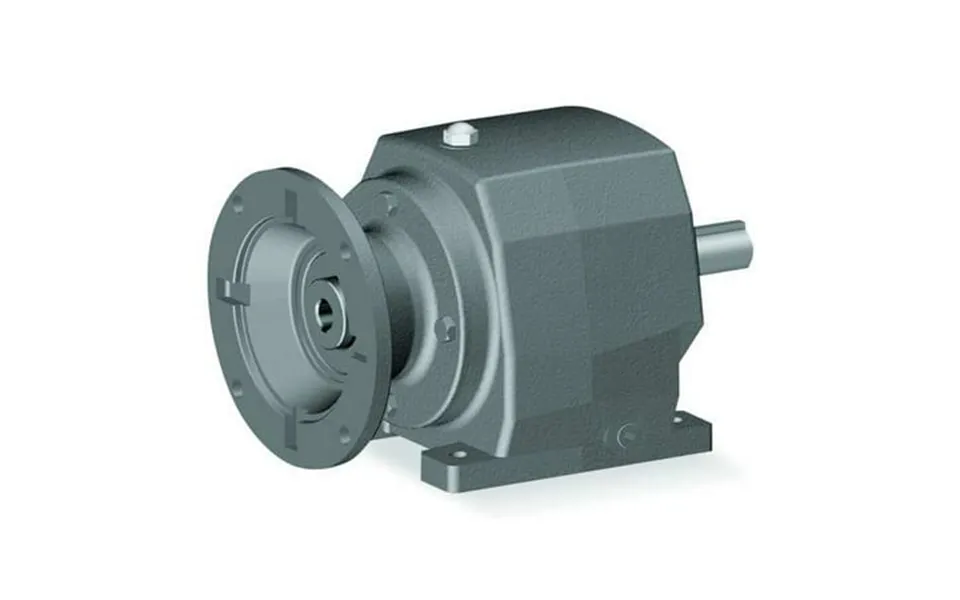

Boston Gear Speed Reducer C-face 56c 71 1 F862b-71k-b5-m1

Speed reducer input connection type c-face gear type helical maximum output speed 24 rpm motor frame designation 56c base to center 2.36 In gear ratio 71:1 rotation cw ccw maximum input horsepower 1 hp maximum output torque 2303 in-lb overhung load capacity 1 600 lb mounting orientation any angle bearing type roller maximum input speed 1 750 rpm gear material hardened and ground steel warning: cancer and reproductive harm Www.P65warnings.Ca.Gov Nickel metallic

Speed reducer input connection type c-face gear type helical maximum output speed 24 rpm motor frame designation 56c base to center 2.36 In gear ratio...show more
