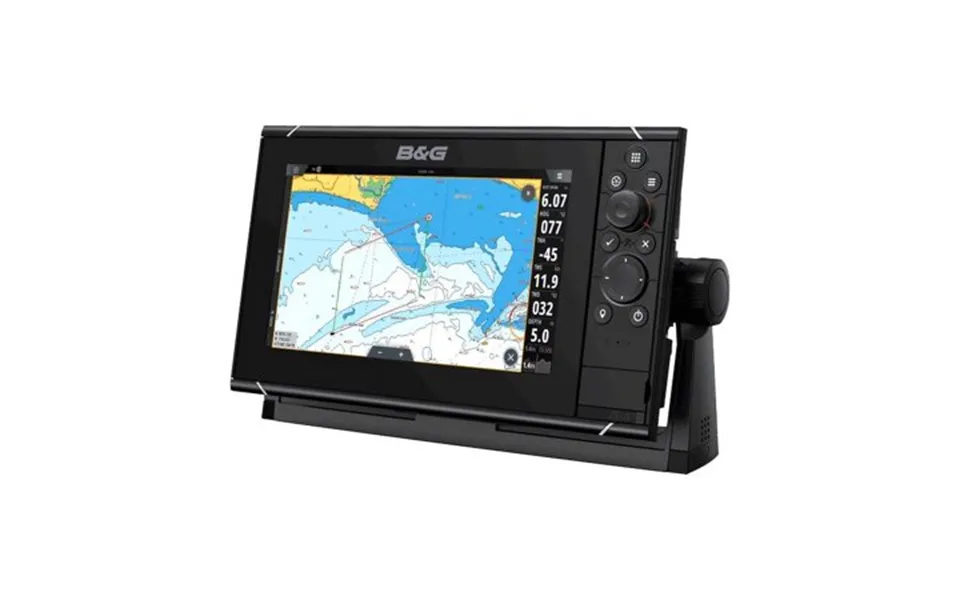

B&g 000-15408-001 Zeus3s 9 Display With C-map Enhanced Chart

B&g zeus s 9 9-inch touchscreen display model: 000-15408-001 the fastest most responsive sailing chartplotter and navigation display yet solarmax ips screens best in class visibility from all angles with and without polarised glasses connects to b&g’s performance network modules for the ultimate offshore performance: halo radar autopilot forwardscan nmea 2000 and 0183 integrated pilot control full suite of sailing features: sailsteer predictwind racepanel laylines and sailingtime up to 6-way information panel split on the display built in wi-fi connect with smartphones tablets and internet hotspots specifications physical dimensions 287 x 166 x 90 mm 11.30 X 6.55 X 3.50 With bracket 311 x 180 x 95 11.30 X 7.07 X 3.72 Weight 1.41Kg 3.11Lb environmental operating temperature range -15 c to 55 c 5 f to 131 f environment shock vibration 100 000 cycles of 20g storage temperature range -20 c to 60 c 4 f to 140 f water resitance ipx6 and 7 power supply voltage 10 31.2 V dc fuse rating 5a power consumption max 21w display display backlight color white display resolution 600 x 1280 display screen brightness 1200 nits display size and type high visibility solarmax hd ips 7 optically bonded tft display viewing angles 80 top bottom 80 left right connectivity ethernet 1 x 5 pin yellow connector x 1 mbit bluetooth internal nmea2000 connectivity 1 x nmea 2000 micro-c port 1 len nmea 0183 connectivity 1 x transmit 1 x receive nmea 0183 baud rates 4800 9600 19200 38400. Tx and rx use sam... Brand: B&G Foods Inc Size: []

B&g zeus s 9 9-inch touchscreen display model: 000-15408-001 the fastest most responsive sailing chartplotter and navigation display yet solarmax ips screens best in class...show more
