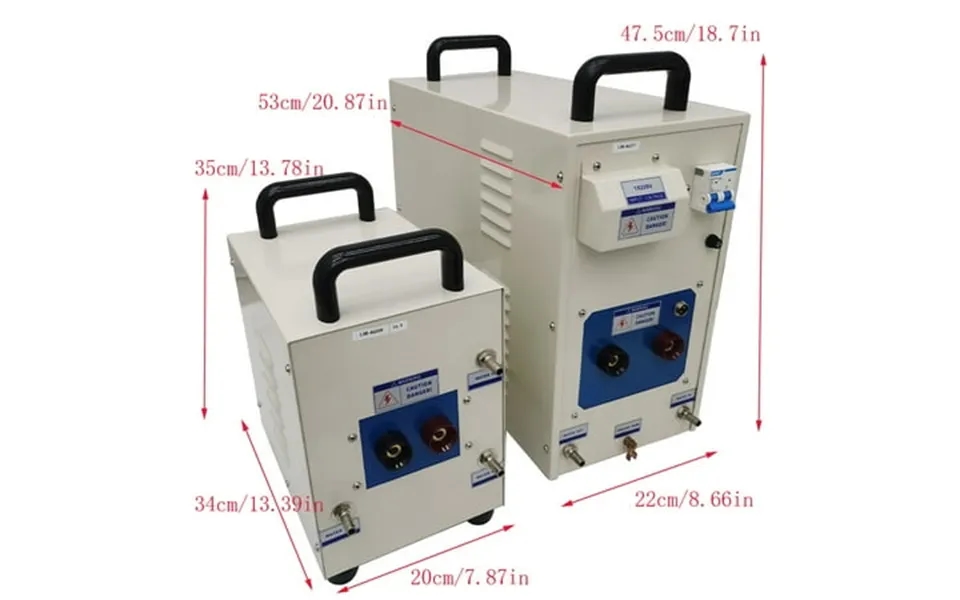

Techtongda Induction Heating Machine High Frequency Induction Heater Furnace Melting Heating 220v

Parameter model: lh-15ab work power 220v 50hz 60hz the range of operating voltage 180-250v output power 15kw fluctuating frequency 30-100khz output current 200-600a heating time 1-99s auto the flow rate of cooling water 0.06-0.12Mpa 7.5L min water temperature protection point 40 degree centigrade weight 94lb dimension 28*23*21in application: 1. Welding: brazing silver welding. 2. Heating: hot forging hot with smelting. 3. Heat treatment: surface quenching. 4. Annealing: tempering quenched and tempered. Attention: 1.Before operating the machine please read the instruction book thoroughly and retain it for future reference. Before you purchase it please clearly understand the voltage and the power of the machine 220v 15kw . 2.This machine can t be used with a plug directly it needs a wire to connect the machine to power line directly the cross-sectional area of power line must be larger than 6 square millimeters. Item include 022060 : techtongda 220v 15 kw high frequency induction heater furnace 1 x heating coil 1 x foot switch 1 x english manual Brand: TECHTONGDA Size: []
