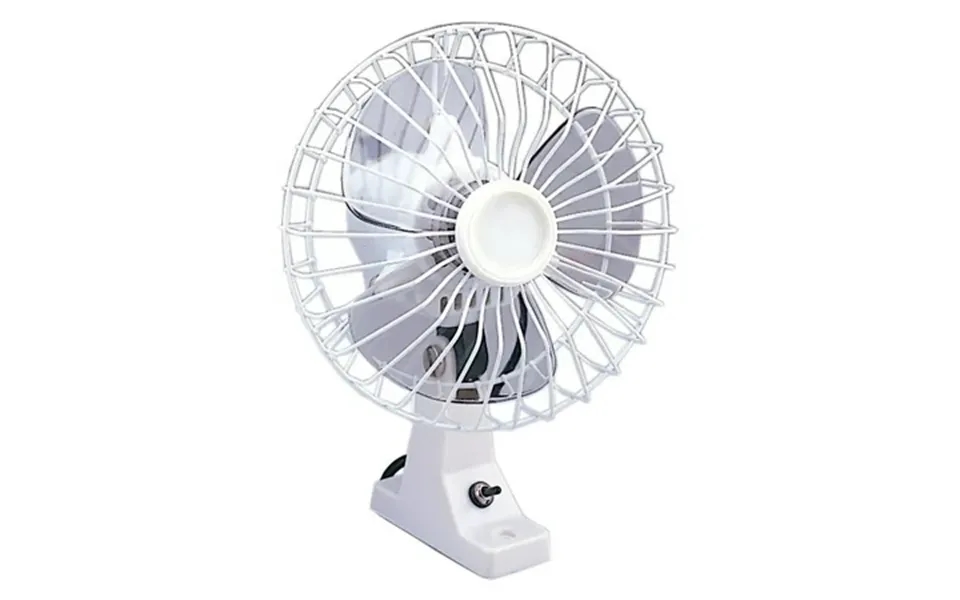

Pactrade Marine Boat Tmc 12v Whisper Quiet Oscillating Fan 6 D Cabin And Galley

This is a tmc quiet oscillating fan that is perfect for cabin and galley use. It has a blade diameter of 6 and it comes with a power cord toggle switch pulls the switch and a cushion with tapping screws. Voltage: 12v current: 1.4A air velocity: 200m min air displacement: 3.69M3 min weight: 0.6Kg. Distance between screw holes: 2-5 8 . Housing diameter: 7 . Oscillation level: the fan oscillates if the lever on the back is pulled down. To stop oscillation push the lever back up. Variable shift head oscillation mechanism: to reset the angle of the fan turn the head to the desired position and press the front guard. Oscillation will then continue at the new angle. Tilt adjustment nut: to change the degree of upward or downward tilt of the fan please turn the nut counter-clockwise for loosening the nut and set the head then retighten the nut just turn the nut clock-wise . Power cord terminals: attach these to the wires of the power cord. If the fan rotates in a reverse direction reverse them and reattach. Maintenance: clean with a soapy cloth wipe with a wet rag and dry with a duster. Do not use gasoline benzene thinners or other volatile solvents. Installation: 1 find a suitable place to install the fan i.E. On the dashboard or doorpost . Be sure the fan oscillates freely. 2 Drill two holes in the car bodywork around 1 8 in diameter opposite the holes in the foot-plate. 3 Secure the foot-plate with the tapping screws insert the cushion between the plate and the bodywork. Brand: Pactrade Marine Size: []

This is a tmc quiet oscillating fan that is perfect for cabin and galley use. It has a blade diameter of 6 and it comes...show more
