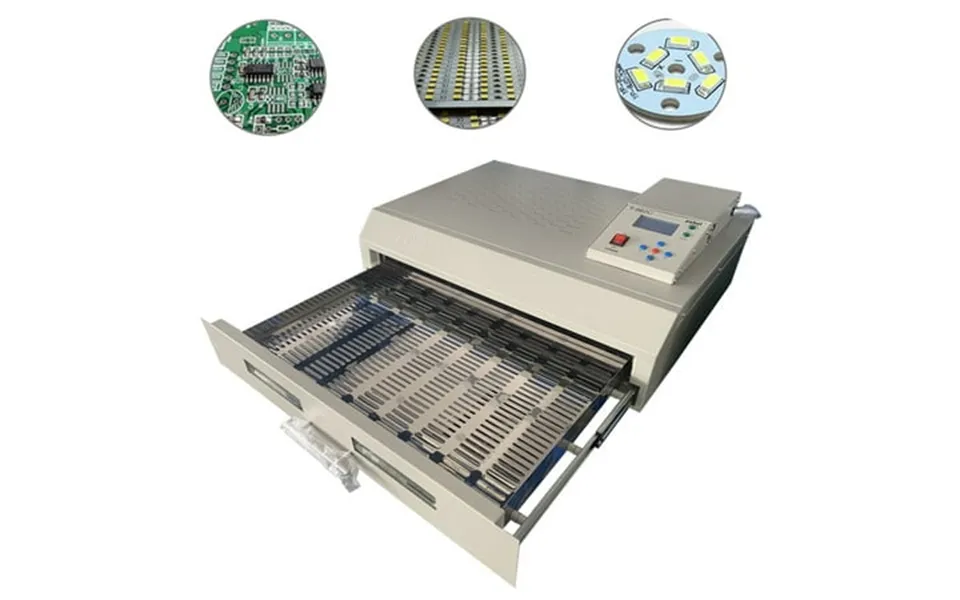

Intbuying Reflow Soldering Machine Reflow Oven T962c Micro-processor Control

Description this automatic reflow soldering machine has the functions of reflow drying heat preservation shaping rapid cooling etc. Reflow oven can complete the welding of single and double sided pcb boards in chip sop plcc qfp bga and other packaging forms it can be used for product glue curing circuit board thermal aging pcb board maintenance and other work. Parameter model: t962c power supply: ac110v 60hz rated power: 2500w effective soldering max area: 600*400 mm 15.7*23.6 Inch temperature range: 0 280 Cycle time: 1 9 min size: 675*510*240 mm 26.5*20 *9.5 In rated duty cycle: 100% advantages: 1.Effective soldering max area: 600*400 mm 15.7*23.6 Inch large welding area for high efficiency. 2.User interface is implemented by way of t962c input keys and an lcd display. 3.The reflow soldering machine is equipped with 2 vent pipe pre-installed interface and the smoke exhaust pipe can be installed on the back of the machine. Attention 1.After use don t switch off the power instantly. Make sure the machine is cooling down sufficiently before switching off. 2.Make sure to place the machine in a very well ventilated area. 3. Please allow 1-2cm errors due to manual measurement. 4.Due to the difference between different monitors the pictures may not reflect the actual color of the item. 5. For safety reasons must be connected to a reliable safety grounding device must have three feet with ground connection. 6. Non-professionals are not allowed to disassemble the back cover of t... Brand: INTBUYING Size: []
