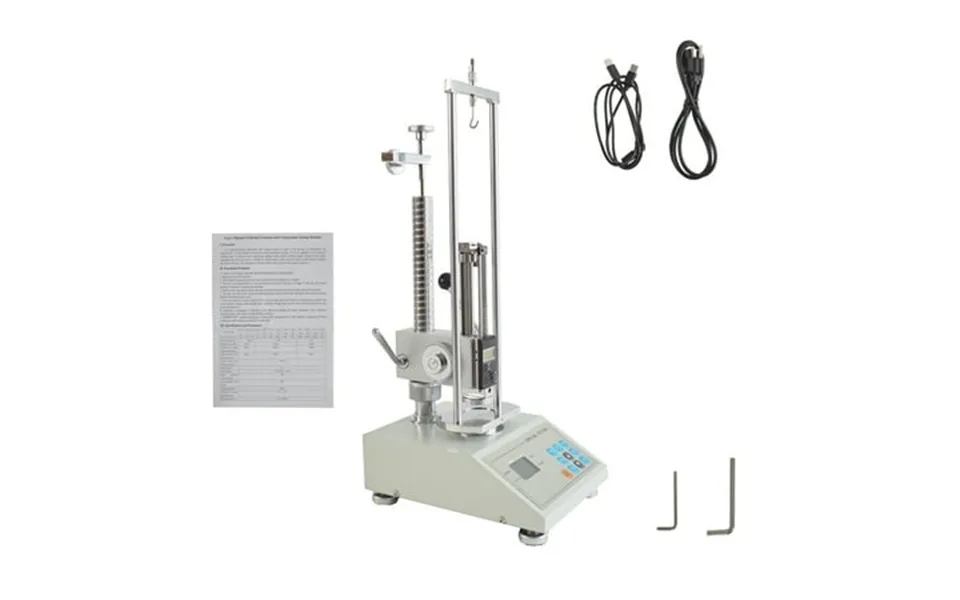

Techtongda Eth-500 Spring Extension And Compression Testing Machine Spring Pressure Test Bench

Product overview: with printing spring pull pressure testing machine is a special instrument for testing the deformation and load relationship characteristics of tensile and compression spring. The printing spring pull pressure testing machine is suitable for tensile and compression spring under a certain working length of the workload test can also be used for rubber and other elastic components of the elastic load test. This type with printing spring pull pressure testing machine using advanced high integration of integrated microcontroller and chinese liquid crystal display the appearance of the metal shell greatly improve the anti-interference ability of the system. Product parameters: model: eth- 500 power supply: ac110-220v 50hz 60hz maximum testing load: 500n 50kg 110.2Lbs minimum resolution: 0.01N diameter of the platen: 1.9 48Mm maximum free length of measurable spring: 5.9 150Mm length of travel of the displacement scale: 3.5 90Mm division value of the displacement scale: 0.01Mm indication error: 1% power capability without printer : 13w power capability with printer : 20w working temperature: 20 10 temperature of storage and transportation: -27 70 relative temperature: 15% 80%rh product size: 8.7 *11.8 *22.8 22*30*58Cm gross weight: 52.9Lb 24kg item included 056251 : spring pull pressure testing machine *1 usb cable * 1 the power cord * 1 wrench * 2 english instruction manual *1 Brand: TECHTONGDA Size: []
