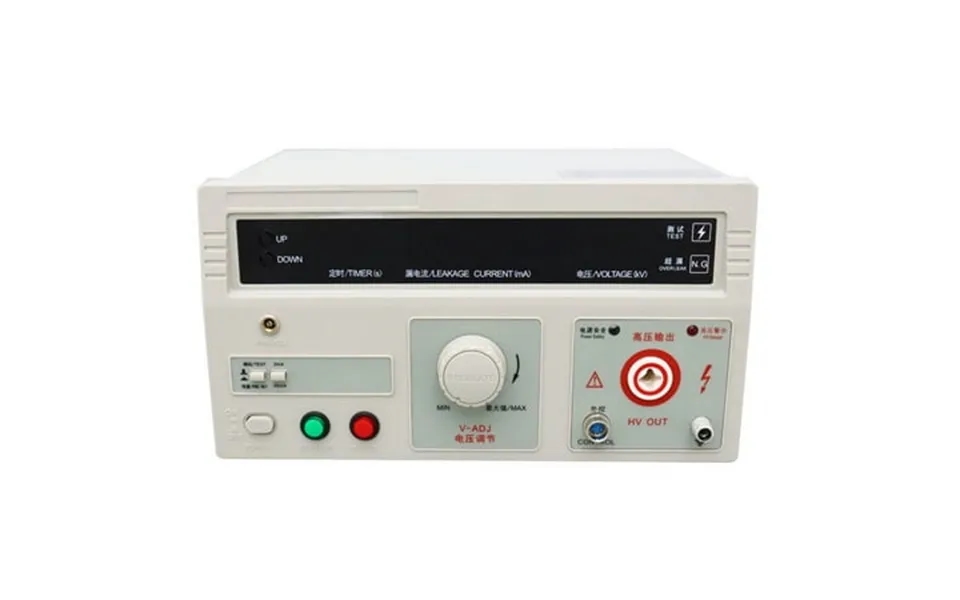

Preasion Digital Withstand Hi-pot Tester Ac5kv 100va Insulation Resistance Tester Rk2670am General-purpose Hv Test 110v

Description: rk267 series voltage withstand test instruments are for general- purpose hv test operation it can be widely used for voltage withstand test in electrician’s assistant instrument rubber-wooden facility voltage convertor wires power meter motor power supply plug cables and all kinds of electronic and electric products. As the launch of the national security standard voltage withstand instrument has become one of necessary withstand test instruments to the radio and electronic products manufacturer. Operating request: environmental temperature 0 40 . Relative dumidity 75% specification: model: rk2670am description: klgital display with remote control test voltage ac : 0 5kv -5% leakage current ac : 0 2 20ma -5% timing s : 0 99s manual control pmax: 100va converter volome converter volome intput voltage power : 110v weight: 40lbs pre-used caution read the following items carefully before operating rk267 series voltage withstand test instrument. 1. Use three-hole power supply plug and insure gnd connection well. 2. Gnd port and power supply gnd port should be connected well. 3. Wear insulation glove stand on insulation mat. 4. Anti-clockwisely circumvolve v-adj rotary switch to the maximum before turn on test instrument. 5. Before preset all functions reset instrument 6. Don t connect test port and test wire when doing test 7. Don t connect hv output port with shield box or gnd wire to avoid instrument damage. 8. Turn off power when accident take place. 9. Examine... Brand: PreAsion Size: []

Description: rk267 series voltage withstand test instruments are for general- purpose hv test operation it can be widely used for voltage withstand test in electrician’s...show more
