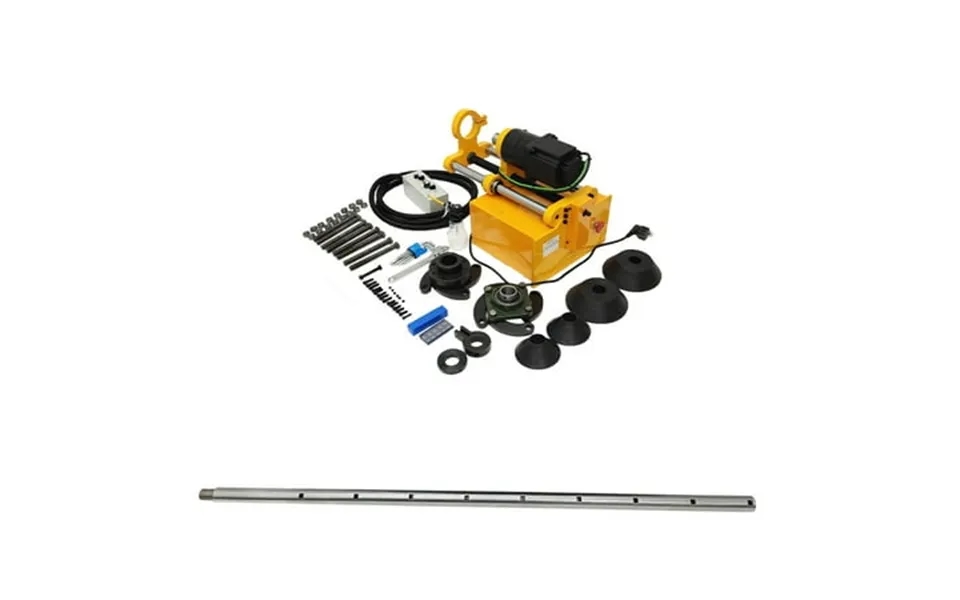

Techtongda Portable Hole Drilling Machine Hole Drilling Connecting Rod Boring Machine For Engineering Machinery

Description: hole drilling machine for engineering machinery is a portable processing equipment developed for field service of engineering machinery which is mainly used in processing of small-scale pipeline inner hole and concentric span hole and widely applied in engineering machinery including excavator crane loader and hoist. Main technical parameters: the maximum processing hole diameter: 180mm the minimum processing hole diameter: 45mm the maximum processing travel: 380mm the maximum feed depth: 2mm on one side a3 steel surface roughness: ra3.2 Deviation from circular form: 0.02Mm gross weight of equipment: 95.65Kg rotate speed: 0-83rpm boring bar: 40*1500mm power: 1.5Kw attention: this machine is installed by fixed clamping and uses different tool rest according to different diameter ranges. Please confirm the diameter of processing hole before use to select the appropriate tool rest. Please read the operation instruction carefully before using the machine and check all the items according to packing list to know about operation safety precautions machine performance and usage specifications. Item included 022807 : techtongda hole drilling machine for engineering machinery 110v xdt40-2 Brand: TECHTONGDA Size: []
