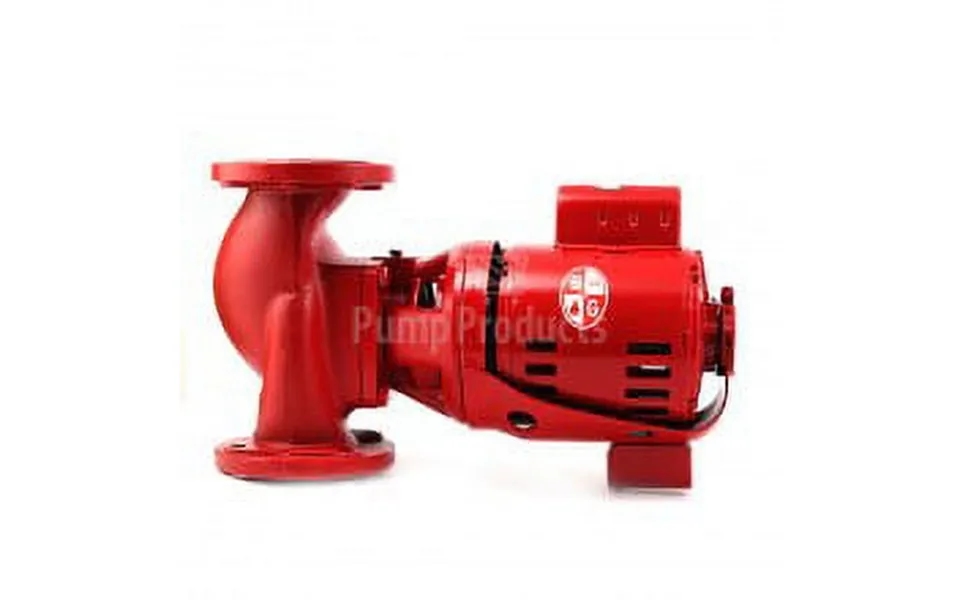

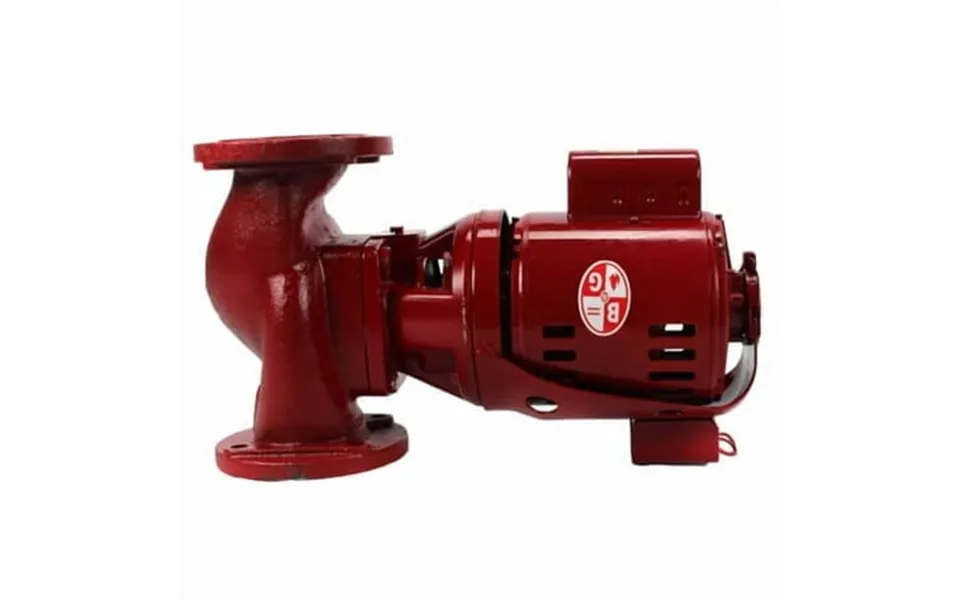

Bell & Gossett Series 2-1 2 1 4 Hp 115v 110 Gpm Oil Lubricated Three Piece Cast Iron Circulator Pump With Non Ferrous Im

Power bell & gossett 102218 2-1 2 1 4 hp oil-lubricated three-piece cast-iron circulator move hot water reliably in closed-loop hydronic systems with the bell & gossett 102218 series 2-1 2 model 2-1 2 ib . This oil-lubricated three-piece inline booster is built for long service with quiet resilient motor mounts and sleeve bearings. The 115 v 1 4 hp motor is designed for 1725 rpm operation and a pair of 2-1 2 flanges is included to streamline change-outs. Rated for up to 125 psi and 225 f standard seal it’s a dependable upgrade for residential and light commercial hydronic circulation. Brand: bell & gossett mpn: 102218 series 2-1 2 model 2-1 2 ib type: oil-lubricated three-piece inline booster circulator closed-loop hydronic size capacity: 1 4 hp 0.19 Kw 115 v 1725 rpm material finish: cast-iron volute steel impeller ib non-ferrous bronze impeller available on related bi model and as service part performance: max working pressure 125 psi max operating temperature 225 f with standard seal 250 f with special seals connections fit: 2-1 2 flanged inline connections pair of 2-1 2 flanges included odp motor dimensions: approx. 17-1 4 L × 10 h width install clearance layout-dependent see submittal included: pump 2 2-1 2 flanges typical kits include flange gaskets mounting hardware and b&g oil tube warranty: 12 months from installation or 18 months from shipment whichever first see b&g terms everyday performance you can count on built for hydronic heating and cooling loops the 102... Brand: R.L. DEPPMANN CO. - 1702 Size: [17.250 x 10.000 x 10.000 in]

Power bell & gossett 102218 2-1 2 1 4 hp oil-lubricated three-piece cast-iron circulator move hot water reliably in closed-loop hydronic systems with the bell...show more
