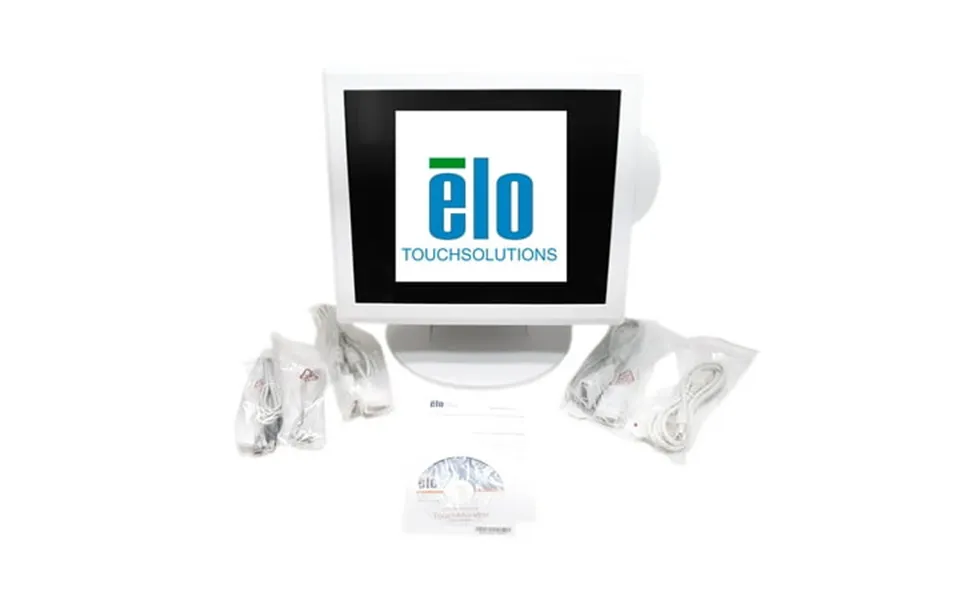

Elo touchscreen pos display 17 lcd vga dvi 2xusb 1xusb-b medical white input:100-240v 1a or 12v 4a e112906 et1729l-8cka-1-ruhz-g specification: point of sale medical display touch technology & capacity: saw intellitouch surface acoustic wave
Single touch diagonal size
17 Diagonal active matrix tft lcd led aspect ratio
5:4 Active area mm
13.3 X 10.6 338 Mm x 270 mm resolution
1280 X 1020 viewing angle
Horizontal: 80 or 160 total vertical: 80 or 160 total number of colors
16.7 Million brightness typical
Lcd panel: 250 nits accutouch: 200 nits response time-total typical
7.2 Msec contrast ratio
1000:1 Input video format
Analog vga dvi video emea carrolltouch models without dvi input video signal connector
Mini d-sub 15-pin vga type dvi-d connector power consumption typical
Monitor 50 w input voltage
Ac: 100-240v 50 60 hz dc: 12v 0.75V monitor dimensions with stand
15.4 X 15.0 X 9.4 391Mm x 381mm x 239mm weight unpackaged
19.3 Lbs 8.8 Kg operating temperature
0 C to 50 c 32 f to 122 f mtbf
50 000 Hours demonstrated stand options
Tilt removeable adjust height mounting options
100Mm vesa mount compeve dtp : mrk001
