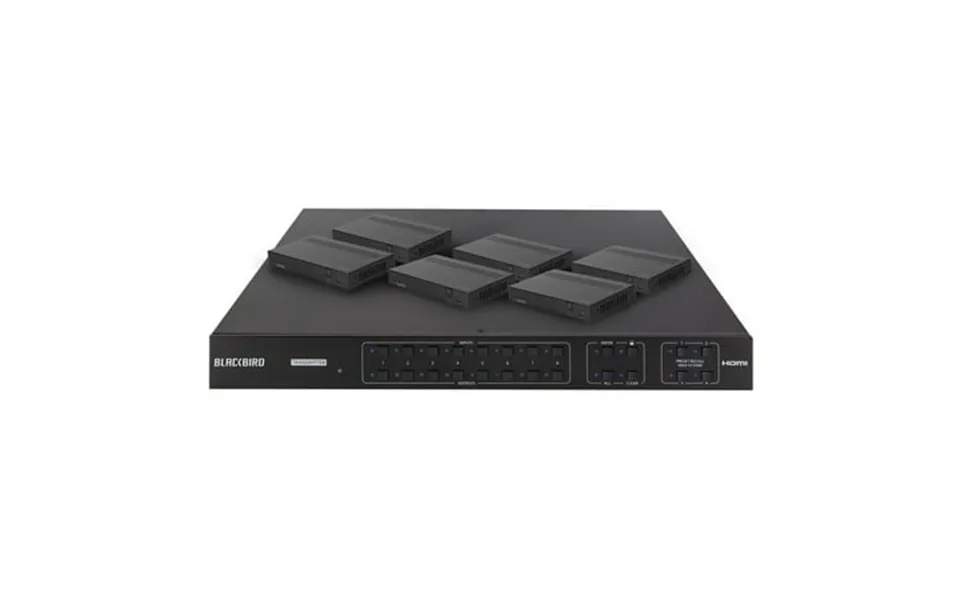

This blackbird 4k 8x8 hdbaset matrix features 8 hdmi inputs 1 hdmi output with audio breakout and 7 hdbaset outputs. It supports video resolutions up to 4k 60hz with ycbcr 4:4:4 and can transmit 4k video to distances up to 131 feet 40 meters and 1080p video to distances up to 229 feet 70 meters over a single cat5e 6 ethernet cable. Audio extracted from the hdmi signal can be output using the digital optical s pdif and balanced stereo analog connectors. It supports bidirectional ir extension and features front panel buttons ir remote control rs-232 and web gui control options. It supports the power over cable poc feature which allows the receivers to draw their power from the matrix over the ethernet cable. It includes smart edid control using the 4-pin dip switch on the rear panel.
Brand: Monoprice
Size: []
