Furnace Control Board Icm Controls Icm2812-kit Universal Hsi

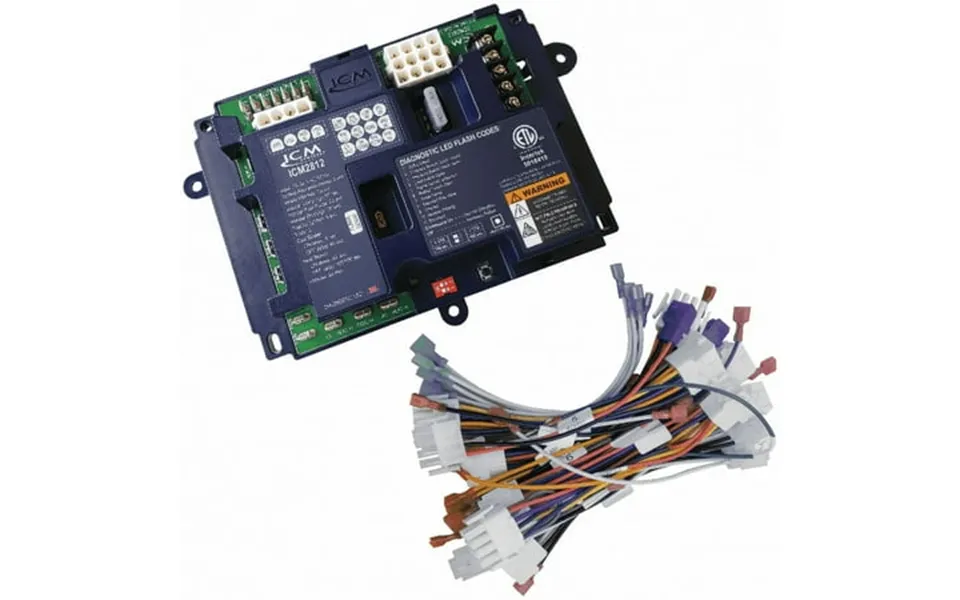

Icm controls part number icm2812-kit the icm2812 is a universal board only replacement for the whiterodgers 50m56u-843 and more than 150 competitive part numbers. Download the icm controls app for full cross reference information. The icm2812-kit includes cable harnesses. Specifications: control voltage: 24 vac 18-30 vac line voltage: 120 vac operating temperature: -40to 175f -40to 80c hsi hot surface ignitor: 6 amp 120 vac gas valve: 1.5 Amp 24 vac inducer draft motor: 2.2 Fla 120 vac blower motor: 9.5 Fla 120 vac operating temperature range: -40 to 176f -40c to 80c humidity range: 5 to 95% relative humidity non-condensing features: furnace control module hot surface ignition hsi control board microprocessor-based monitors timing trial for ignition system switches flame sensing and lockout and 100% lockout safety feature compatible with lp or natural gas led indication for status and fault codes to aid in troubleshooting replaces the icm2812-kit includes cable harnesses that make it a replacement for more than 150 competitive part numbers including white rodgers 50m56u-843. Size: []
