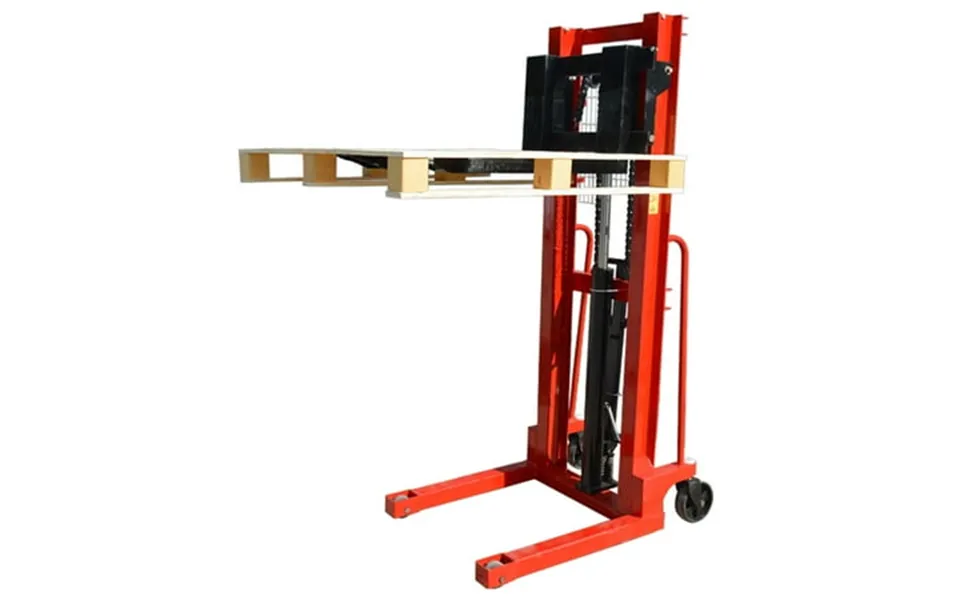

The manual hydraulic pump walkie stacker is a high-lift truck handling and short-distance transport two vehicles because they do not produce sparks and electromagnetic fields. It can be used with pallets cartons containers etc. Suitable for factories workshops warehouses railway stations docks and other places of goods increase lifting and handling and other operations fire-proof place those requirements such as printing workshop depot wharf etc. Are more appropriate. When used with pallets cartons containers etc. Parameter: rated lifting weight: 2000kg 4408lbs maximum lifting height: 1600mm 63 the lowest height: 100mm 4 the inside wide of car legs: 600mm 23.6 The outside wide of car legs: 740mm 29.1 Maximum outside width: 600mm 23.6 The maximum internal width of a fork: 300mm 11.8 Total length of the fork: 800mm 31.5 Load center distance: 400mm 15.7 Lifting speed time: 15mm 0.6 Lowering speed control: can control turning radius: 1380mm 54.3 Please note: 1.Butter is required to be used to the pulley and chain before using. The forklift is generally used on flat hard surfaces. The overload shall be strictly prohibited and the rated load shall be shown in tonnage marks. 2. The payload center is 40cm 15.75 The center point is 1cm 0.39 Outward and its actual weight needs to be reduced by 50kg 110.23Lb . 3. When the height of the ascent exceeds 120cm 47.24 The actual weight of the load will be reduced by 25kg 55.12Lb . Item included: 153163 preasion manual hydraulic stacker ha...
Brand: PreAsion
