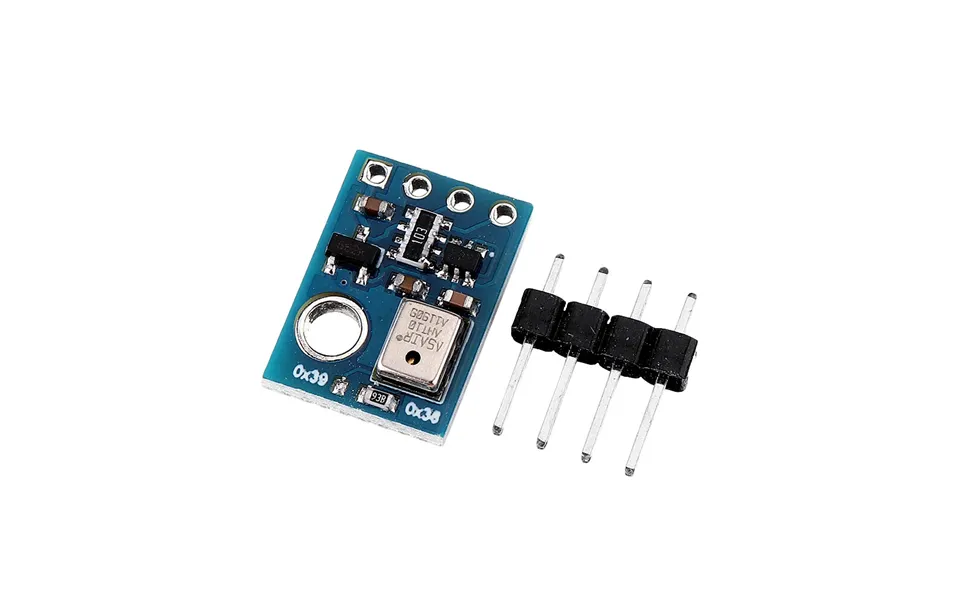

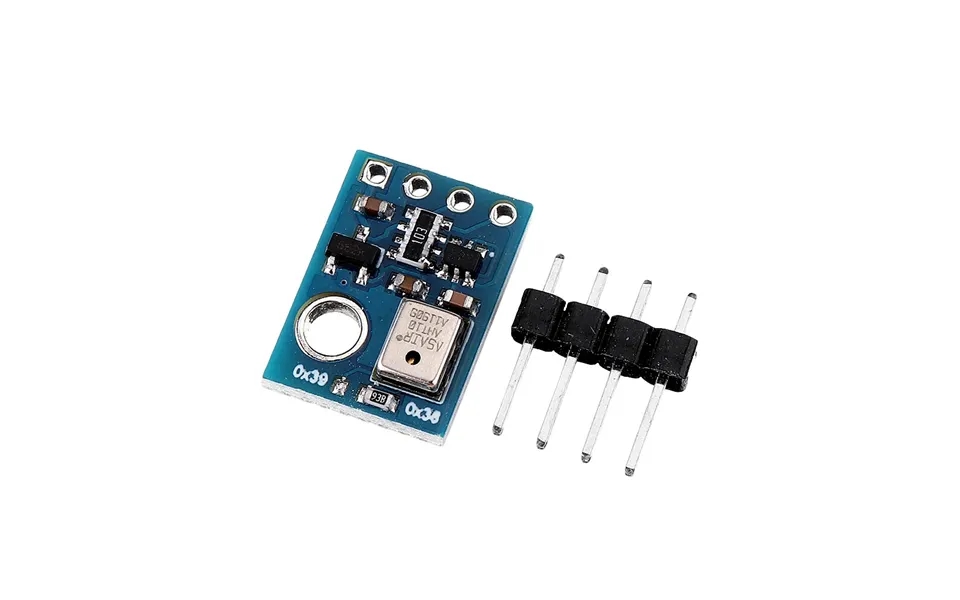

Aht10 High Precision Digital Temperature And Humidity Sensor Measurement Module I2c Communication

Code for click here to openintroduction the aht10 a new generation of temperature and humidity sensors sets a new standard in size and intelligence it is embedded in a dual row flat leadless smd package for reflow soldering with a 4 x 5mm bottom and a height of 1 6mm the sensor outputs a calibrated digital signal in standard i 2c format the aht10 is equipped with a newly designed asic specific chip an improved mems semiconductor capacitive humidity sensing element and a standard on chip temperature sensing element its performance has been greatly improved beyond the reliability level of previous generation sensors the first generation of temperature and humidity sensors have been improved to make them more stable in harsh environments characteristic 1 module size 16 11 mm2 interface type i2c3 working voltage 1 8 6 0 v4 interface size 4 2 54mm pitch5 humidity accuracy typical2 6 humidity resolution 0 024 7 temperature accuracy typical0 3c8 temperature resolution typical 0 01 c9 working temperature 40c 85cpackage includes 1 x digital temperature and humidity sensor Brand: Geekcreit
