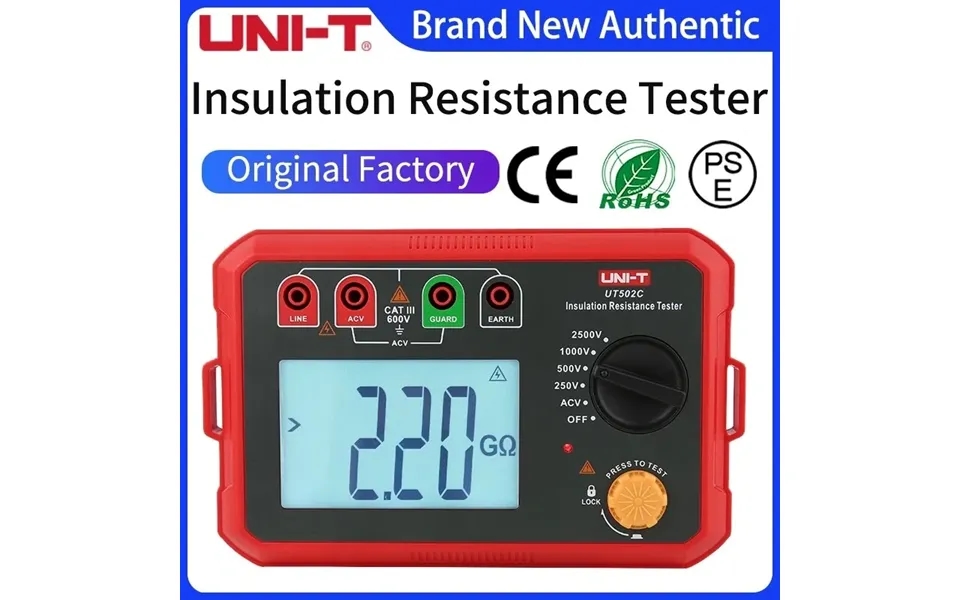

Uni-t Digital Megohmmeter Ut502c 2500v Insulation Resistance Tester Ommeter Megometer Ground Meter Backlight Auto Range

Click to download the instruction manualut502c insulation resistance testerut500 series digital insulation resistance testers with their new design large scale integrated circuit and digital circuit are utilized to measure insulation resistance alternating voltage and other parameters this series of testers have features of complete functions high accuracy stable performances comfortable and reliable operation the tester is used in maintenance test and verification for various electrical equipment and is applicable to measure insulation resistance of transformer motor cable switch electric appliances etc specificationsoutput voltagemeasurement rangeinsulation resistance measurement250v0 00m 500m 500v0 00m 2 00g 1000v0 00m 5 00g 2500v0 00m 20 0g accuracy0 00m 99 9m 3 5 100m 9 99g 5 5 10 0g 20 0g 10 5 voltage measurement rangeac 30v 750v 50hz 60hz 2 3 short circuit current2mapowered byadaptor optional without charging function 6 1 5v aa alkaline batteriesauto power off self lock function low battery indication data hold auto discharge audible and visual alarm overrange indication backlight function altitude 2000 moperating temperature and humidity0 35 75 rhstorage temperature and humidity 20 60 80 rhratingcat iii 600vproduct colorred greyproduct size183 5mmx115mmx74mmfeatures insulation resistance ac voltage buzzer alarm backlight display automatic shutdown voltage reminderpackage included 1 x meter no battery inc Brand: UNI-T

Click to download the instruction manualut502c insulation resistance testerut500 series digital insulation resistance testers with their new design large scale integrated circuit and digital circuit...show more
